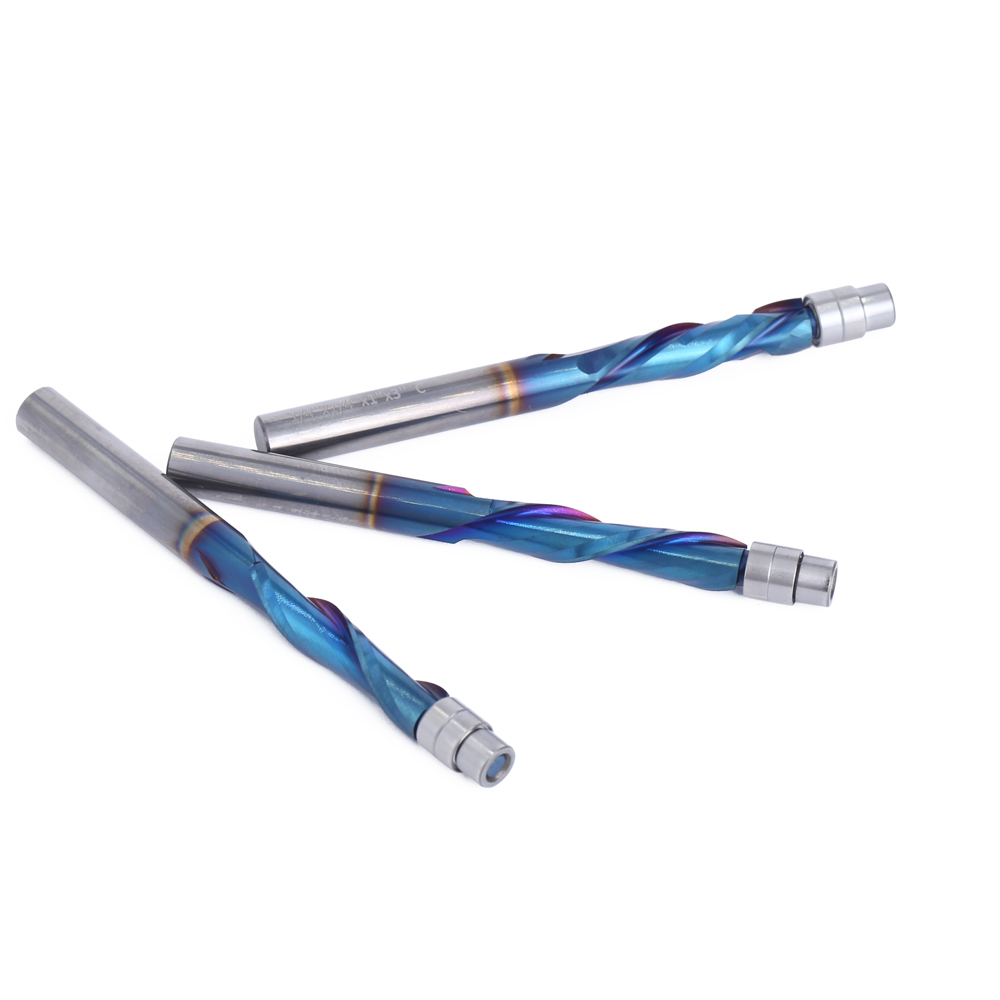

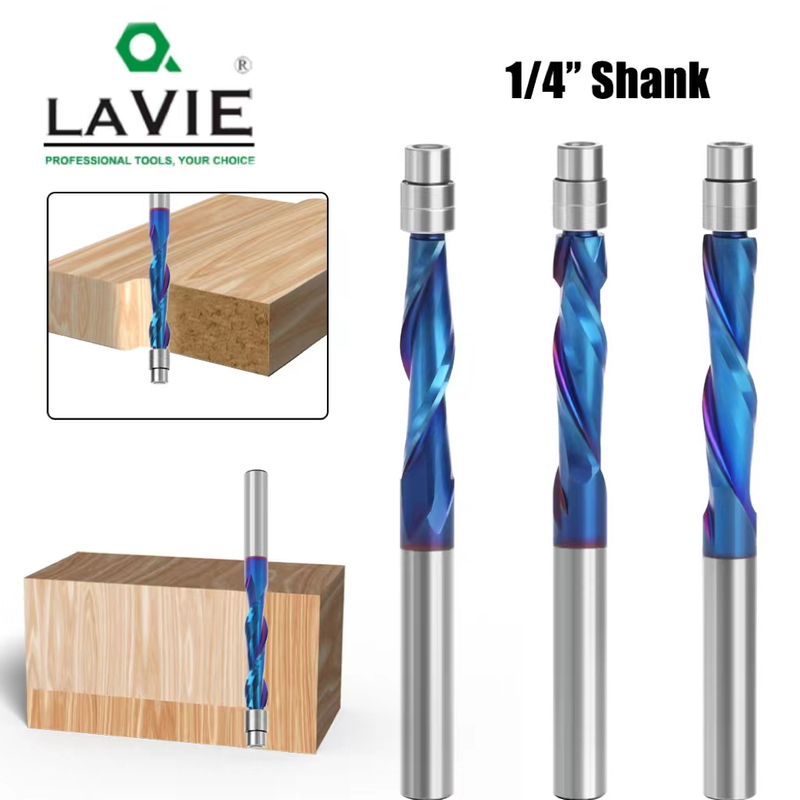

As a professional manufacturer of woodworking milling cutters, we are well aware that the performance and durability of tools directly affect processing efficiency and the quality of finished products. For this reason, we have launched the Nano Blue Integral Alloy trimming tool - a high-end trimming tool that integrates high-strength materials, advanced coating technology and multi-functional cutting design, dedicated to meeting diverse woodworking processing needs.
This trimming tool is made of solid hard alloy material, which combines excellent hardness and toughness. It can handle high-load processing environments, avoid chipping or breaking problems, and significantly enhance the durability of the tool. The surface of the cutting tool is coated with a nano-blue coating, which forms a dense protective layer through high-temperature vapor deposition technology. This effectively reduces the coefficient of friction and the accumulation of thermal stress, and inhibits wear and adhesion phenomena. After testing, the nano-blue coating can extend the tool life by more than 50%, and is especially suitable for processing high-density wood, artificial boards and composite materials.
To adapt to different processing scenarios, the Nano Blue trimming tool offers three cutting methods:

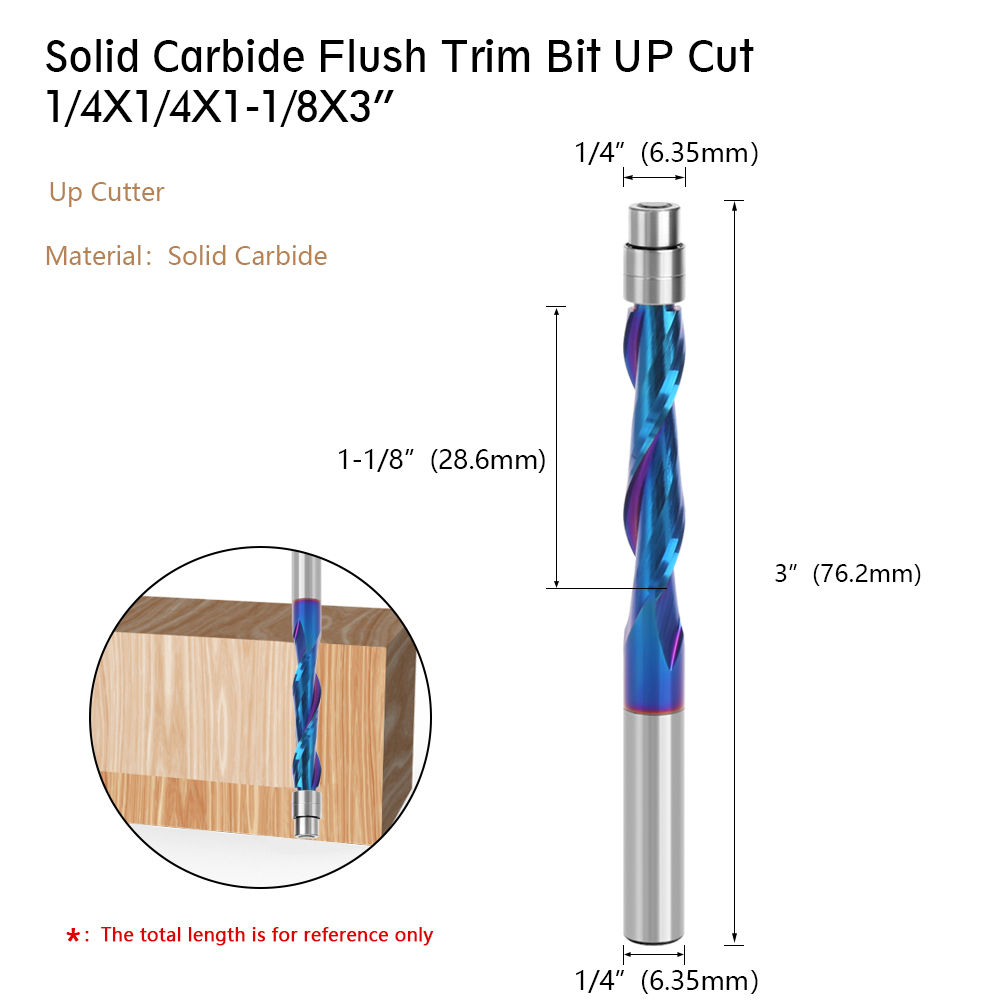

Upper cutting design: The cutting edge cuts upwards, suitable for processing scenarios supported by the base plate. It effectively avoids surface tearing and ensures that the upper edge of the workpiece is smooth and free of burrs.

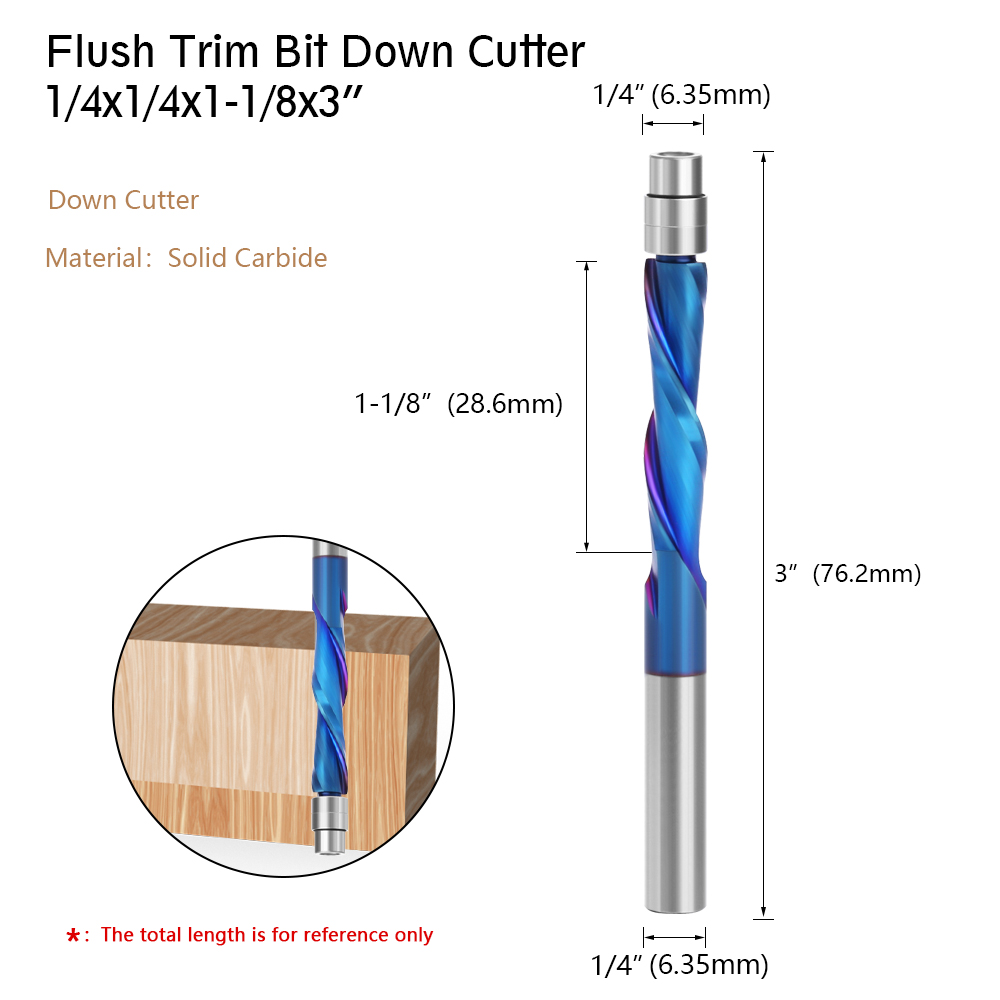

Down cutting design: The cutting edge cuts downward, which is suitable for panel pressing processing, preventing edge chipping on the bottom surface and enhancing processing integrity.

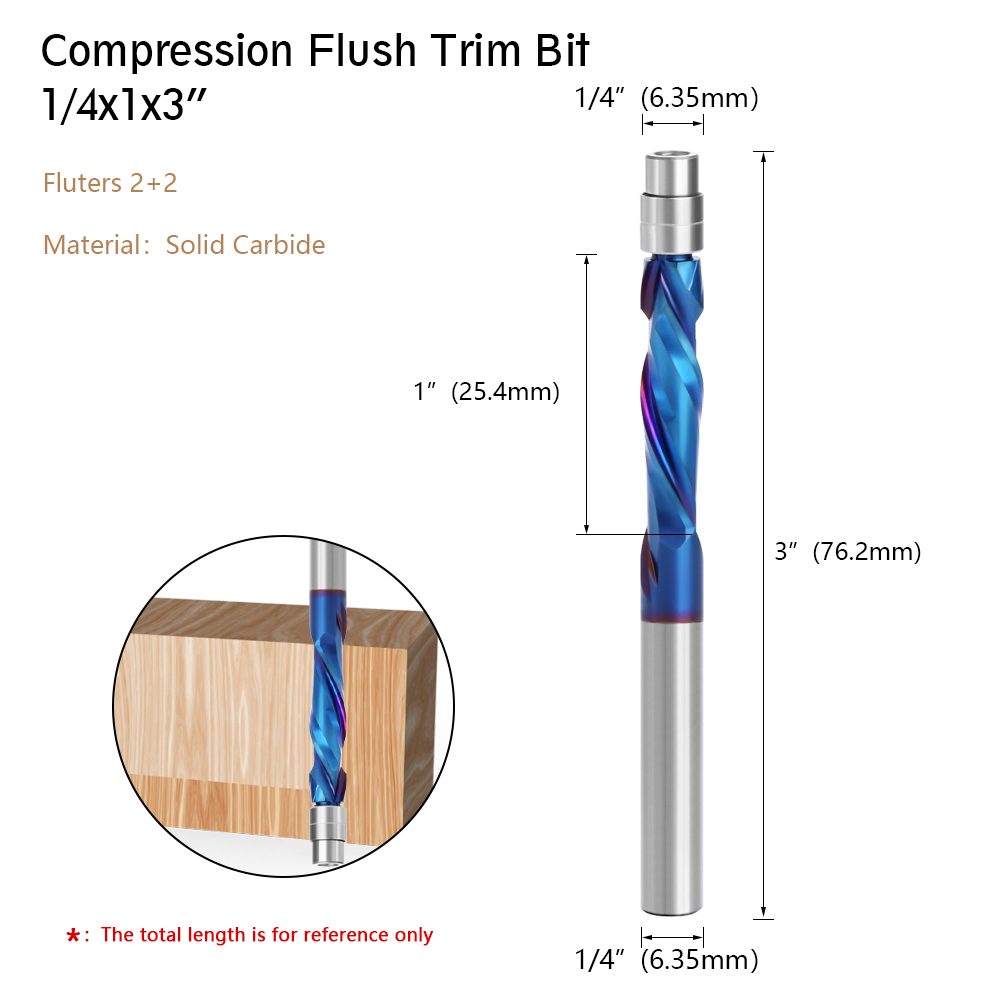

Compression cutting design: Combined with the bidirectional cutting edge structure of upper and lower cutting, double-sided trimming can be completed in one feed, significantly improving efficiency. It is particularly suitable for mass production.

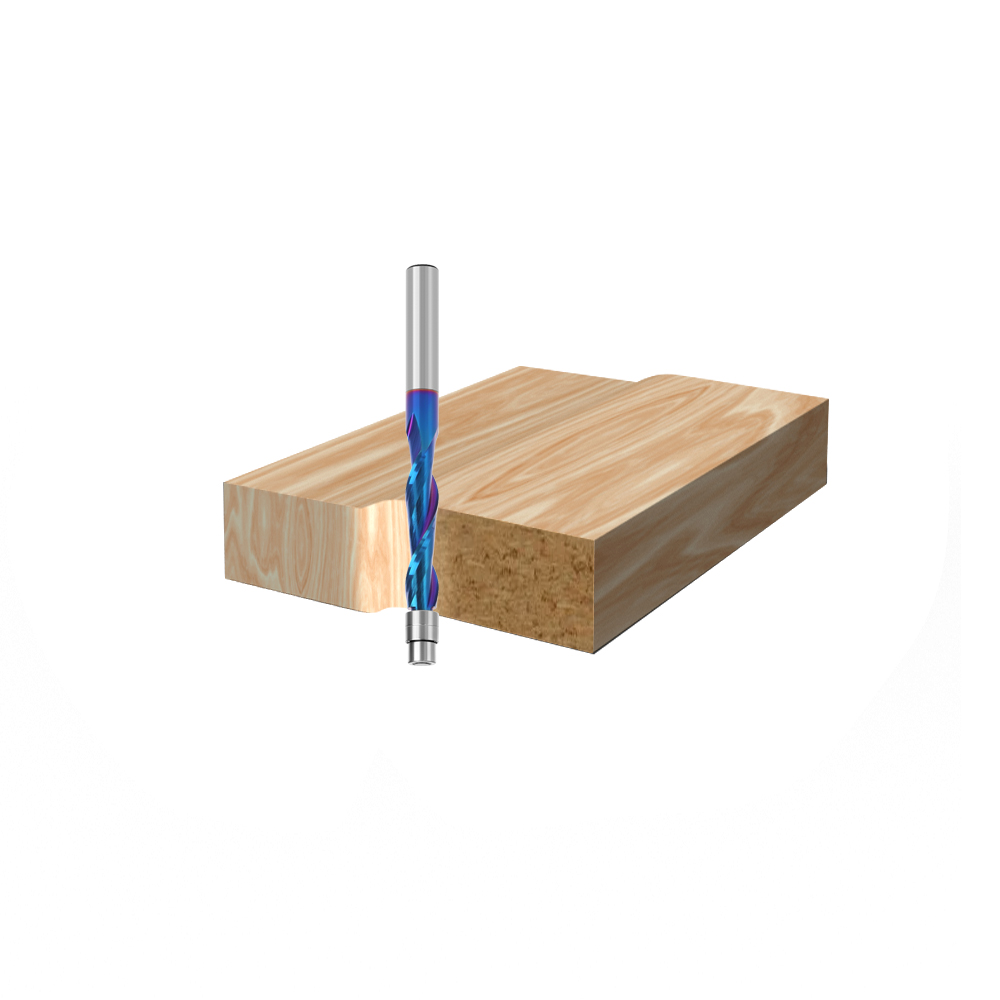

Whether it's furniture edge banding, cabinet edge trimming, detailed processing of wooden doors, or precise edge trimming of materials such as solid wood, particleboard, and density board, this edge trimming knife can perform stably. Its nano-blue coating can also lower the cutting temperature, reduce resin adhesion, extend the cleaning and maintenance cycle, and help users save time and costs.
We strictly control every production process, from the sintering of alloy materials, the precise grinding of cutting edges to the coating adhesion treatment, all of which are completed with high-precision equipment. The cutting edge adopts a multi-tooth design (commonly 2-4 teeth), balancing cutting efficiency and surface finish. It supports stable operation of high-speed motors (recommended speed: 18,000-24,000 RPM) and is compatible with mainstream CNC equipment and handheld routers.
Please read the operation manual of the machine tool and the cutting tools before use.
It is strongly recommended to wear goggles, dust masks and hearing protection devices.
Make sure the cutting tools are securely installed and use them within the recommended rotational speed range.
Keep the work area tidy and avoid clutter from interfering.
SKU | SIZE | N.W./kgs | PACKAGE | PACKAGE SIZE/mm |
Z07A072976UBL | 1/4*1/4*1-1*8*3 | 0.03 | Tube | 85*13*13 |
Z07A072976DBL | 1/4X1/4X1-1/8X3 | 0.03 | Tube | 85*13*13 |
Z07A072576CBL | 1/4X1X3 | 0.03 | Tube | 85*13*13 |
Z07AT3ABL | 1/4 Shank 3pcs Set | 0.09 | Tube+PVC Bag | 120*15*80 |
 |  |  |
 |  |  |
Material: Micro-grain Solid Tungsten Carbide
Coating: Nano Blue (nACo) Heat-Resistant Coating
RPM Recommendation: 18,000 - 24,000 RPM
Compatibility: CNC Routers, Handheld Routers, Table-Mounted Routers
Shank Diameter: 1/4" (6.35mm)
Installation: Ensure the bit is inserted fully into the collet. Inspect bearings regularly to ensure they spin freely; replace if seized to avoid template damage.
Protection: Always wear ANSI-approved safety goggles, dust masks, and hearing protection.
Operation: Do not force the tool. Let the spiral geometry do the work to maintain a consistent feed rate.

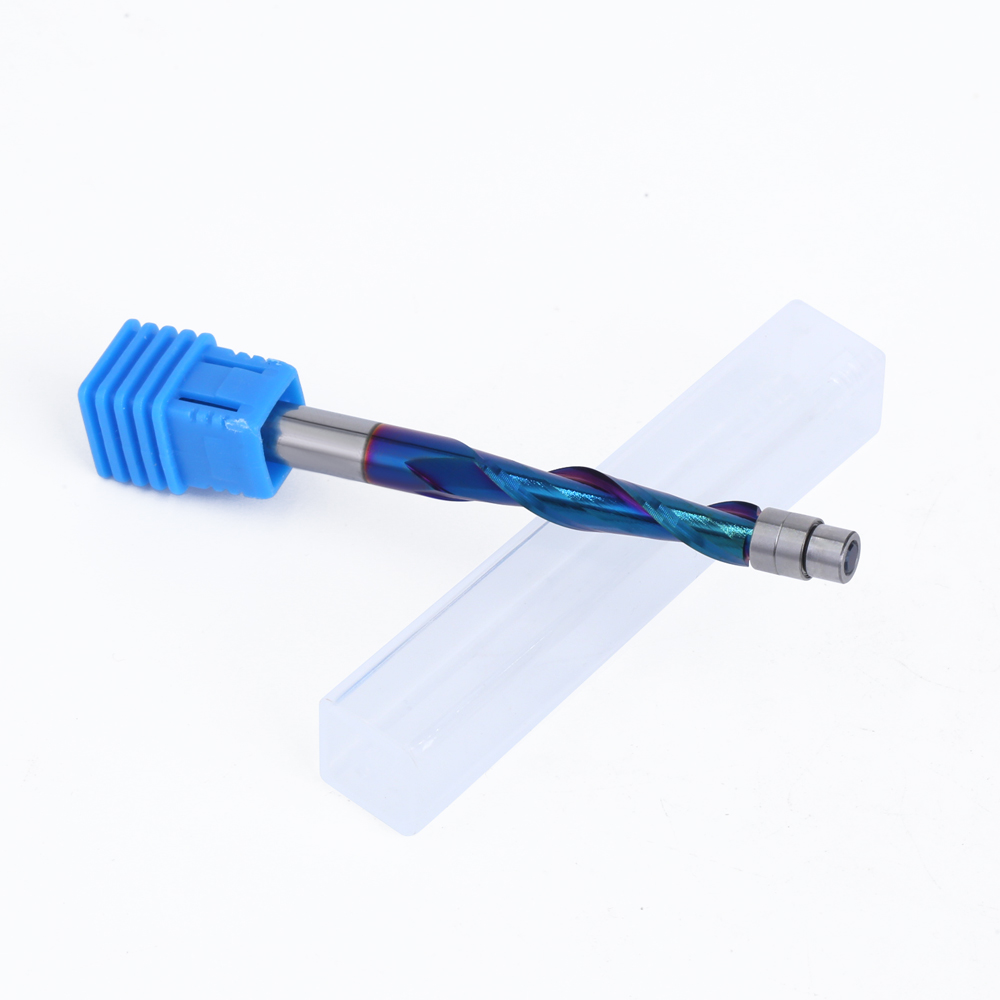

Storage: Keep tools clean and stored in the provided tubes to protect the brittle carbide edges.
A: The choice depends on which side of the material needs the cleanest finish:
Up-Cut: Best for deep cuts and solid wood. It pulls chips up, leaving a clean bottom edge but may tear out the top surface.
Down-Cut: Ideal for shallow passes on laminates/veneers. It pushes chips down, ensuring a perfect top edge but requires slower feed rates.
Compression: The professional choice for plywood and melamine. It cuts from both top and bottom toward the center, ensuring chip-free edges on BOTH sides in a single pass.
A: Standard straight bits "chop" the wood, which can cause vibration and a rough surface. Solid Carbide Spiral bits use a continuous shearing action (like a plane), which results in a significantly smoother, mirror-like finish. Additionally, the spiral geometry removes chips more efficiently, preventing the bit from overheating and burning the wood.
A: The Nano Blue coating is a ceramic-like heat shield. It has extreme hardness and heat resistance. It reduces friction preventing resin and pitch from sticking to the bit. This coating keeps the cutting edge sharper for longer, extending the tool's life by 2-3 times compared to uncoated carbide bits, especially when cutting abrasive materials like MDF.
A: Yes, these flush trim bits come with ball bearings, making them perfect for handheld routers doing template work or edge trimming. However, because they are solid carbide and very sharp, always ensure your router speed is adjustable. We recommend running these 1/4" bits between 18,000 and 24,000 RPM for safe and stable operation.
A: Absolutely. For melamine and double-sided laminates, we highly recommend the Compression (Model: Z07A072576CBL) version. Its unique geometry prevents the delicate surface coating from chipping or fraying, saving you time on sanding or edge banding preparation.
