| Quantity: | |
|---|---|
Attributes:
1. Fresh out of the box new and first rate quality.
2. Ideal for creating drawers and carpentry projects.
3. Proficient grade switch bits.
4. Sturdy steel bodies with against payoff highlight.
5. Impervious to development and intensity with Teflon covering.
6. High snare and shear plots for smooth cutting.
7. Encased and greased up heading.
Details:
Type: Switch Spot with 8mm Knife
Material: 45# Steel
Tip: YG6X Carbide
Knife Size: 8MM
Accuracy: +/ - .003" resistance
Body Material: Strong Solidified Steel
Sharp edge: Top notch carbide
For nitty gritty particulars, allude to the pictures gave.
Bundle incorporates: 5 bits of Switch Pieces
SKU | SIZE | N.W./kgs | PACKAGE | PACKAGE SIZE/mm |
MC02047S22GN | 1 | 0.041 | Tube | 29*29*77 |
MC02047S25GN | 2 | 0.048 | Tube | 29*29*77 |
MC02047S28GN | 3 | 0.06 | Tube | 29*29*79 |
MC02047S32GN | 4 | 0.066 | Tube | 35*38*81 |
MC02047S35GN | 5 | 0.079 | Tube | 34*34*81 |

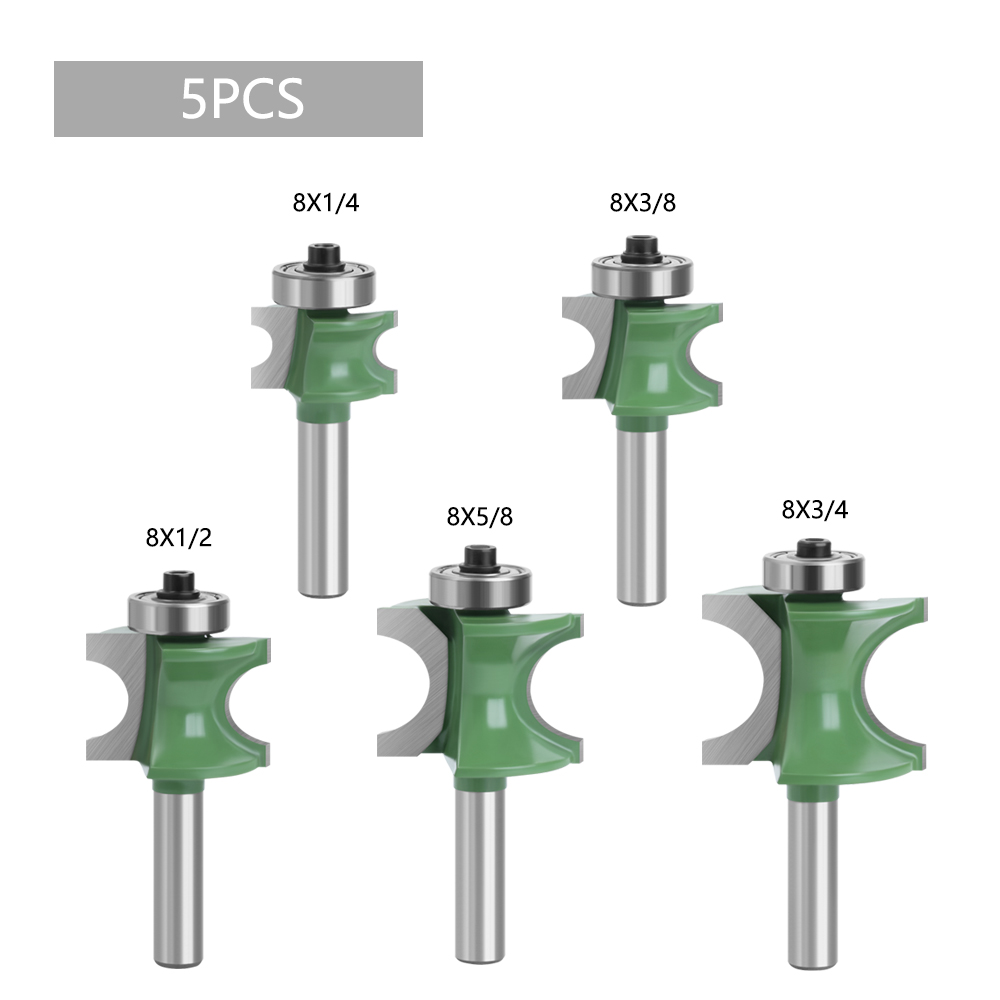

MC02046T5GN | 8 Shank 5pcs Set | 0.3 | Tube+PVC Bag | 81*78*64 |

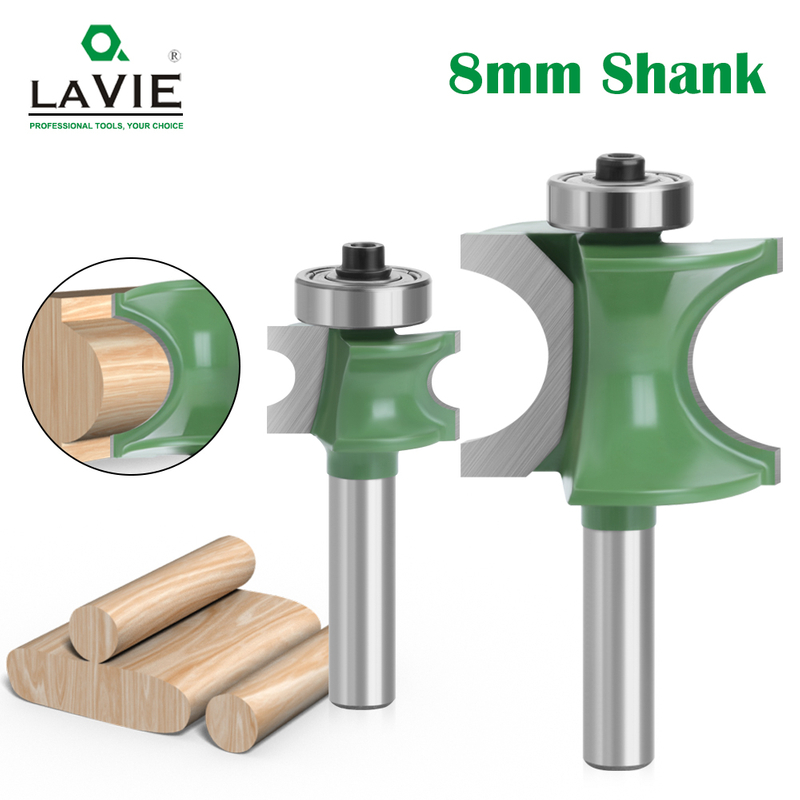

The 8mm Shank 2 Flute Carbide Bullnose Bearing Router Bit blends aggressive material removal with delicate edge profiling, making it a versatile tool for both functional and decorative woodworking. Its bullnose (radiused) carbide cutter—paired with a precision bearing guide—creates smooth, uniform rounded edges on wood, plastic, and acrylic, enhancing both the aesthetics and safety of finished pieces. Perfect for cabinet doors, drawer fronts, and decorative trim, this bit delivers professional results for both professionals and hobbyists.
Parameter | Details |
Material | Carbide-tipped (C3 micrograin carbide) with 8mm hardened steel shank |
Cutting Profile | Bullnose (1/4" radius) with 2-flute design for efficient chip evacuation |
Bearing Diameter | 1/2" (adjustable for depth control via locking collar) |
Max RPM | 22,000 (optimized for 2-flute chip evacuation at high speeds) |
Chip Load | 0.002"–0.005" per flute (ideal for hardwoods like walnut and cherry) |
2-Flute Design: The two large flutes balance material removal rate and chip evacuation, minimizing heat buildup during continuous cuts in dense materials.
Bullnose Profile: Creates consistent 1/4" radius edges that soften sharp corners, enhancing safety in furniture and reducing splintering in high-traffic areas.
Precision Bearing: ABEC-7 rated bearing maintains uniform radius dimensions even on irregular or curved surfaces, ensuring symmetry across multiple workpieces.
Carbide Grain Structure: Fine micrograin carbide (1–3μm particle size) enhances edge retention and cutting efficiency, outperforming coarse-grain carbide in finish quality.
8mm Shank Compatibility: Fits compact routers from brands like Dremel, Black+Decker, and Craftsman, making it suitable for both handheld and table-mounted routing operations.
Cabinetry & Furniture: Rounds edges of drawer fronts, shelf edges, and table tops, adding a polished look to kitchen cabinets, bathroom vanities, and dining tables.
Acrylic Fabrication: Smooths sharp edges on acrylic displays, signage, and protective covers, preventing cracking and improving handling safety.
Woodturning: Finishes turned bowls, spindles, and candlesticks with a polished, ergonomic grip, enhancing both functionality and visual appeal.
DIY Projects: Ideal for hobbyists crafting picture frames, jewelry boxes, and decorative panels where rounded edges elevate design quality.
Q: Can this bit create larger radius edges than 1/4"?
A: No. This bit is specifically designed for 1/4" radius bullnose profiles. For larger radii, select bullnose bits with corresponding radius specifications.
Q: What's the recommended feed rate for different wood types?
A: For hardwoods (oak, maple), use 60–100 IPM (inches per minute); for softwoods (pine, cedar), 100–150 IPM works best to prevent burning.
Q: How do I adjust the bearing to control the depth of the bullnose profile?
A: Loosen the bearing’s retaining nut with a wrench, slide the bearing to the desired position along the shank, then re-tighten the nut to lock it in place—test on scrap material before final use.
Note:
The variety you select will be focused on for conveyance. In the event of inaccessibility, an alternate variety will be subbed. If it's not too much trouble, survey this note cautiously prior to putting in your request.
If it's not too much trouble, take into consideration a 1-3mm distinction because of manual estimations.
Because of varieties in show and lighting, the thing's variety in the image might vary from the real item. Much thanks to you for your comprehension.
 |  |  |  |  |
