Incorrect tooling selection in CNC operations causes compounding failures on the shop floor. Machine downtime escalates while ruined stock piles up in the scrap bin. Spindle wear accelerates under improper loads, and excessive post-processing time destroys production schedules. Operators face a paradox of choice when browsing massive tooling catalogs, often over-purchasing highly specialized tools for single jobs. However, a tightly curated set of specific geometries can effectively handle the vast majority of standard shop applications.
Standardizing a core tooling library requires a strict technical evaluation framework. You must focus on material compatibility, flute geometry, and operational advantages rather than marketing claims. Understanding how specific solid carbide profiles interact with different materials eliminates guesswork at the console. This guide breaks down the exact tooling geometries required to cover the most common routing applications, ensuring optimal cut quality, predictable wear rates, and extended tool life across your primary material substrates.
A foundational set of 5–7 specific geometries (including upcut, downcut, compression, and surfacing) is sufficient to process the vast majority of wood, plastic, and non-ferrous metal applications.
Flute direction directly dictates chip evacuation and edge finish; matching the cut direction to the material's lamination or grain is the primary driver of part quality.
Solid carbide CNC end mills provide the necessary rigidity and thermal tolerance for high-speed CNC routing, vastly outperforming High-Speed Steel (HSS) in production environments.
Tool life and cut quality are heavily dependent on mitigating runout, understanding shank-to-deflection ratios, and strictly adhering to material-specific feed and speed calculations.
Defining a "must-have" tool requires strict success criteria based on shop floor realities. The tool must offer versatility across multiple materials without requiring constant tool changes. It needs predictable wear rates so operators can schedule replacements before failure occurs. It must maintain tight dimensional tolerances over long production runs. Selecting the right CNC Router Bits hinges on understanding the physical forces at play during material removal and how tool geometry mitigates those forces.
Shank diameter directly controls tool deflection. Deflection ruins dimensional accuracy, causes chatter marks on the cut edge, and leads to premature tool failure. The physics are straightforward: stiffness increases to the fourth power of the diameter. A 1/2-inch shank is up to 16 times more rigid than a 1/4-inch shank. Always use the largest shank diameter your collet accepts. This maximizes rigidity, reduces vibration transfer to the spindle bearings, and ensures the cutting edge engages the material exactly as programmed in your CAM software.
Chip load dictates tool survival and cut quality. The foundational formula is: Chip Load = Feed Rate / (RPM x Number of Flutes). Operating outside the optimal chip load window guarantees failure. If the chip load is too low, the tool rubs against the material instead of shearing it. This causes severe thermal degradation, burning the material and destroying the carbide binder. If the chip load is too high, mechanical failure occurs. The tool simply snaps under the excessive lateral force because the flutes cannot evacuate the massive chips fast enough.
Material Type | Target Chip Load (1/4" Tool) | Target Chip Load (1/2" Tool) | Primary Failure Risk |
|---|---|---|---|
Hardwoods (Oak, Maple) | 0.005" - 0.007" | 0.015" - 0.018" | Burning from low feed rates |
Softwoods (Pine, Cedar) | 0.006" - 0.008" | 0.017" - 0.020" | Tear-out from dull edges |
MDF / Particleboard | 0.007" - 0.009" | 0.018" - 0.022" | Abrasive wear on carbide |
Aluminum (6061) | 0.002" - 0.004" | 0.004" - 0.008" | Chip welding in flutes |
Coatings alter how tools interact with specific materials by reducing friction and increasing surface hardness. Matching the coating to the substrate extends tool life significantly. Uncoated solid carbide remains the standard for wood, acrylics, and non-ferrous metals where absolute edge sharpness is paramount. Coatings inherently round the cutting edge slightly at a microscopic level. Zirconium Nitride (ZrN) is optimized for aluminum and non-ferrous metals to prevent material welding to the flute. Amorphous Diamond (DLC) is mandatory for highly abrasive materials like carbon fiber, G10, and high-density MDF to extend cutting edge lifespan against constant abrasion.
CNC routing involves a permanent trade-off between material removal rates and surface finish. Tools that clear chips the fastest often leave the worst top-edge finish. Upcut geometries pull chips out efficiently but tear the top surface fibers. Downcut geometries leave a pristine top edge but pack chips into the cut channel. You must base your strategic tool selection on the required final surface finish, the depth of the cut, and the capacity of your dust collection system to clear the kerf.
Building a reliable tooling library starts with the fundamentals. These core geometries handle the bulk of standard material processing. Mastering these specific profiles allows operators to program efficient toolpaths without constantly swapping specialty cutters.
Upcut spirals excel at deep pocketing and slotting operations. They route thick, homogenous materials like hardwoods, thick plastics, and aluminum efficiently. The mechanism pulls chips upward and away from the cutting zone. This prevents heat buildup and tool breakage by ensuring the cutter does not recut its own chips. The trade-off is surface tear-out. Upcut bits splinter the top surface of veneered or laminated materials. They also require robust workholding, such as strong vacuum zones or mechanical clamps, to counteract the strong upward lifting forces that can pull parts off the spoilboard.
Downcut spirals are mandatory for cutting thin materials, veneers, and laminates. They handle shallow pocketing where top-surface aesthetics are critical. The flute pushes chips downward. This shears the top edge cleanly and presses the material flat against the spoilboard, aiding in part hold-down. However, they suffer from poor chip evacuation in deep cuts. Pushing them too deep risks packing chips into the kerf, generating massive heat, and causing premature tool wear or fires in MDF dust.
Compression bits execute single-pass profile cutting on double-sided laminates, melamine, and high-quality plywood. The geometry combines upcut and downcut features on the same flute. The bottom pulls up while the top pushes down. This compresses the material toward the center of the core, leaving clean, chip-free edges on both the top and bottom surfaces simultaneously.
Standard compression bits require aggressive depth-of-cut programming. The first pass must be deeper than the upcut portion of the bit to achieve the compression effect. If you cut too shallow, you are only engaging the upcut portion, which will tear the top veneer. Mortise compression bits feature a shorter upcut tip, typically 0.120 inches or less. This allows compression cuts in thinner sheets or shallow grooves without tearing the top surface, making them highly versatile for cabinet joinery.
Surfacing bits flatten the MDF spoilboard. This ensures strict Z-axis accuracy across the entire machine bed. They also rapidly remove material on large slabs or rough lumber. These tools utilize a large cutting diameter designed for shallow, wide passes at high feed rates. When evaluating surfacing bits, look for bottom-clearing geometries. They should leave a glass-smooth finish without tram lines, assuming your spindle is properly trammed perpendicular to the bed.

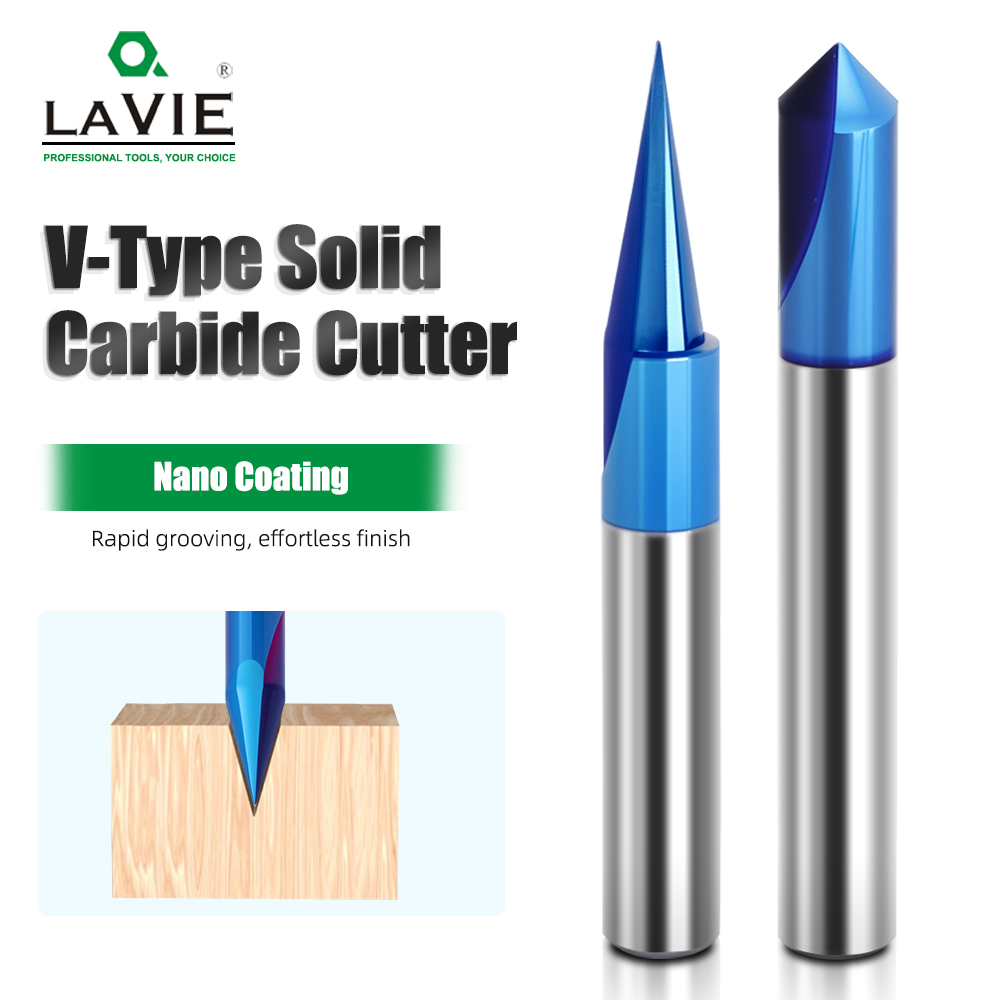

V-groove bits handle V-carving, sign making, lettering, and edge chamfering. The tapered profiles allow for variable width cuts based entirely on Z-depth. Selection criteria must focus on the sharpness of the point and concentricity. Even minor runout causes visible stepping and jagged edges in fine text. A high-quality V-bit will come to a true point, whereas lower-quality bits often have a microscopic flat spot at the tip that drags through the material.
Standard profiles cannot handle everything. Specific materials require specialized Solid Carbide CNC End Mills to prevent melting, welding, or excessive vibration during the cut.
O-flute bits route cast acrylics, extruded acrylics, HDPE, and polycarbonates. The single-flute design features a highly polished, wide gullet. This ejects chips rapidly before they can melt and weld to the tool. The primary performance indicator is the ability to produce a near-transparent edge finish on acrylics without requiring secondary flame polishing. The polished flute reduces friction, which is the primary cause of heat generation when cutting temperature-sensitive plastics.
Cutting non-ferrous metals on standard CNC routers requires single-flute geometries. They maximize chip clearance. This allows for the higher feed rates necessary to maintain an appropriate chip load. High-RPM spindles bog down easily if pushed too hard; single-flute tools prevent this by taking aggressive, clean bites per revolution while allowing massive space for the aluminum chip to evacuate without welding to the cutter.
3D topographical relief carving and mold making require ball nose geometries to create smooth, sweeping contours. Standard ball nose bits maintain a uniform diameter along the cut length. They are ideal for shallow finishing passes on relatively flat reliefs. Tapered ball nose bits feature a tapered shaft leading to a ball nose tip. This combines the detail of a small radius tip with the extreme rigidity of a larger shank. It significantly reduces vibration during deep-reach operations, allowing for faster feed rates without snapping the delicate tip.
Production nesting demands fast, high-volume sizing cuts in dense hardwoods, MDF, and plywood. Chipbreaker bits feature alternating notches along the cutting edge. These notches break chips into smaller, easily evacuated segments. This lowers cutting forces, reduces spindle load, and extends tool life. Operators typically use these for the heavy hogging passes and follow up with a standard profile bit for a final finishing pass of 0.015 inches to clean up the edge.
Tooling choices directly impact production economics and machine uptime. High-Speed Steel (HSS) is generally obsolete for CNC applications. HSS dulls rapidly at high RPMs. Solid carbide is the standard despite the higher initial cost because it maintains a sharp edge under extreme thermal stress. The labor cost of constantly changing dull HSS bits far outweighs the purchase price of quality carbide.
Insert tooling offers a strong long-term return on investment for high-volume surfacing and profiling. Replaceable carbide knives cost less over time than replacing entire solid bits. When an edge dulls, the operator simply rotates the insert to a fresh edge. However, solid bits have a lower upfront cost and are physically necessary for smaller diameters where insert bodies cannot be manufactured.
Tool geometry dictates operational limits. You cannot buy high-performance Router Bits and run them at incorrect feeds and speeds. Doing so negates the tool's value. Incorrect parameters will instantly burn the cutting edge, snap the tool, or ruin the workpiece. A premium tool run at the wrong chip load will perform worse than a cheap tool run at the correct chip load.
Even the best tools fail if implemented poorly. Operators must control physical variables at the machine level to ensure consistent results.
Keep tool stick-out as short as possible. The longer the tool extends from the collet, the more it deflects under lateral load. Always use the thickest shank the collet allows. Rigid setups produce accurate parts and extend tool life. If you need to cut deep, use a tool with a short flute length and a relieved shank rather than a tool with a massive, fragile flute length.
Heat destroys carbide binders. Mitigate heat in sensitive materials by adjusting your chip load to ensure the chip carries the heat away from the cut. Utilize air blasts to clear chips and cool the cutting zone. Avoid dwelling in corners; keep the tool moving to prevent localized heat buildup. If the machine must stop, program the spindle to retract immediately.
High-speed machining (HSM) toolpaths transform tool life. Trochoidal milling reduces lateral forces on small solid carbide end mills. It takes light radial cuts at full axial depth using circular motions. This prevents breakage in deep slots and utilizes the entire flute length for even wear, rather than just wearing out the bottom eighth of an inch.
Dirty or worn collets are a massive, often-ignored risk on the shop floor. Runout degrades cut quality, halves tool life, and causes uneven wear on multi-flute bits. Establish a strict collet replacement cycle. Replace ER collets every 400 to 500 machine hours. Always use proper torque specifications to prevent overtightening, which distorts the collet permanently.
Remove the collet from the nut daily and blow out all dust.
Inspect the internal tapers of the spindle for resin buildup.
Clean the collet with a dedicated solvent and a brass brush.
Never snap a tool into a collet while it is outside the nut.
Apply the exact torque specified by the spindle manufacturer using a torque wrench.
Audit your current spindle and collet capabilities to determine your maximum shank diameter and runout tolerance.
Establish a rigid maintenance schedule to clean collets daily and replace them every 400 to 500 hours.
Source your core set of upcut, downcut, and compression bits from reputable industrial suppliers.
Calculate material-specific chip loads before running any new tool geometry on the machine.
A: An upcut bit pulls chips upward, providing excellent evacuation but causing top-surface tear-out. A downcut bit pushes chips downward, leaving a clean top edge but trapping chips in deep cuts, which can cause heat buildup.
A: You should always use solid carbide for CNC routing. High-Speed Steel (HSS) cannot withstand the heat generated by high-RPM CNC spindles and will dull almost immediately in production environments.
A: Compression bits are used to cut double-sided laminates, melamine, and veneered plywood. They pull up from the bottom and push down from the top, leaving a clean, chip-free edge on both sides of the material.
A: A single-flute tool is best for cutting aluminum on a standard CNC router. It provides maximum chip clearance, preventing the aluminum from melting and welding to the tool at high spindle speeds.
A: Replace bits when you notice a degraded surface finish, increased spindle load, louder cutting noise, or visible rounding on the cutting edge. Tracking machine hours per tool helps establish predictable replacement cycles.
A: O-flute bits are the best choice for plastics. Their single-flute, highly polished gullet design ejects chips rapidly, preventing heat buildup and leaving a smooth, near-transparent edge finish.
A: Standard compression bits have a long upcut section requiring deep first passes. Mortise compression bits have a very short upcut tip (usually under 0.120 inches), allowing them to cut shallow grooves or thin materials without tearing the top surface.
