Selecting the right shank diameter is a critical structural decision. It is never just a casual preference. The shank serves as the absolute foundation of your bit’s rigidity. It directly dictates achievable feed rates, final surface finish, and overall tool longevity. Hobbyists often default to 1/4-inch shanks simply due to standard router limitations. However, industrial and production environments face much steeper stakes. You must carefully weigh the physical realities of tool deflection against your overall tooling budgets. Choosing the wrong size leads to broken bits, ruined materials, and wasted hours. This guide breaks down the core engineering principles you need to understand. We will explore machine compatibility, material hardness factors, and return on investment. You will learn how to confidently select the optimal shank diameter for your daily production goals.
Thicker shanks exponentially reduce tool deflection, minimizing chatter and extending bit life.
1/2" shanks are the industry standard for production nesting and heavy material removal.
1/4" shanks are necessary for tight-radius detail work but require conservative feed rates to prevent snapping.
Collet size and spindle horsepower dictate your maximum shank capacity; using reducer bushings introduces runout risks.
Upgrading to larger shanks in a Solid Carbide End Mill increases upfront costs but typically lowers the total cost per cut through extended durability.

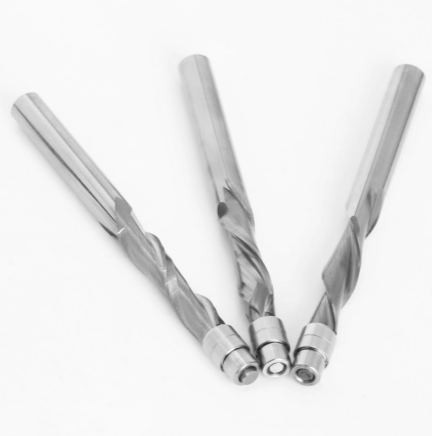

Tool deflection is the primary enemy of precision machining. When a cutter engages material, lateral forces push against it. The shank must resist these lateral forces to maintain a straight toolpath. We call this the physics of rigidity. Diameter affects stiffness exponentially. Deflection decreases to the fourth power of the diameter. This represents a massive mechanical advantage. A 1/2-inch shank is technically 16 times stiffer than a 1/4-inch shank. We assume flute length and material composition remain identical in this calculation. You gain immense structural stability just by stepping up the shank size.
Reduced deflection directly prevents chatter. Chatter is the harmonic vibration resonating through the spindle and the workpiece. It leaves ugly, rippled marks on your cut edges. A stiffer shank powers through material smoothly. This smoother action leads to significantly cleaner edge finishes. You will spend far less time sanding or post-processing parts. Time saved in the finishing department drastically improves your shop floor efficiency.
Thicker shanks also act as superior heat sinks. Machining generates intense friction and thermal buildup. Heat degrades the binder inside carbide tooling. A thick shank contains more physical mass. This extra mass pulls heat away from the fragile cutting edge. It channels thermal energy upward into the collet. The spindle collet then dissipates the heat safely into the surrounding air. This thermal management preserves the temper and hardness of the carbide.
Less vibration ultimately translates to incredible tool longevity. Harmonic wobbling causes micro-chipping on the flute edges. Even microscopic fractures dull the blade rapidly. A rigid shank eliminates this wobbling effect. Smooth operation drastically extends the working life of CNC Router Bits. You will replace your tooling far less frequently.
Always select the thickest shank your spindle collet natively accepts.
Insert the shank deeply into the collet, leaving only 1/8-inch of smooth shank exposed.
Never grip the fluted section of the bit inside the collet jaws.
Regularly clean your collets to ensure maximum surface contact and heat transfer.
Navigating the standard sizes requires understanding your specific operational limits. Each diameter serves a distinct purpose in the machining ecosystem. We must evaluate them based on capability, availability, and structural limits.
These are the undeniable entry-level standard. They remain best suited for hobby-grade machines and compact trim routers. You will need them for intricate detail work. V-carving, small sign making, and fine engraving require delicate toolpaths. They excel in situations where the actual cutting diameter is intentionally very small. However, they carry severe limitations. You face a high risk of snapping them under heavy side-loads. Operators must utilize conservative feed rates. You must also program much shallower pass depths to prevent catastrophic tool failure.
This diameter represents the rare middle ground. Operators often use them when 1/2-inch tooling is too heavy. Sometimes, mid-tier prosumer machines lack the horsepower for massive cutters. Yet, the operator knows 1/4-inch bits remain too fragile for the job. The 3/8-inch option bridges this gap perfectly. The primary limitation here involves inventory availability. Tooling manufacturers produce fewer profiles in this specific size. You will find less variety compared to the dominant 1/4-inch and 1/2-inch standards.
Industrial shops rely entirely on 1/2-inch shanks. They are best for commercial production runs and heavy sheet nesting. You need them when processing thick hardwoods, dense MDF, or solid aluminum blocks. The advantages are overwhelming. They provide maximum rigidity under extreme stress. This stability allows for highly aggressive chip loads. You can execute single-pass deep cuts safely. Production bottlenecks disappear when you stop babying fragile bits.
Table: Standard Shank Diameter Comparison
Shank Size | Primary Application | Rigidity Level | Common Machine Type |
|---|---|---|---|
1/4 Inch | Detail work, V-carving, intricate profiles | Low | Hobby CNC, Trim Routers |
3/8 Inch | Moderate profiling, balancing cost | Medium | Prosumer CNC, Light Industrial |
1/2 Inch | Heavy nesting, deep pocketing, surfacing | Maximum | Commercial / Industrial Spindles |
You must match the shank precisely to the physical demands of the toolpath. Ignoring this matching process leads to poor yields and broken equipment. Let us explore the critical rules governing these pairings.
We use a standard rule of thumb for the shank-to-cut-diameter ratio. The cutting diameter should ideally never exceed the shank diameter by a large margin. Consider a 1-inch flattening bit mounted on a 1/4-inch shank. This creates a severe leverage imbalance. The wide cutting edges act like levers against the thin center post. This geometry is highly prone to violent vibration. Conversely, mounting that same 1-inch cutter on a 1/2-inch shank makes it incredibly stable. The thick core resists the leverage perfectly.
Material hardness plays a massive role in your selection. Soft foams or plastics forgive thin shanks. Hardwoods, phenolic resins, and non-ferrous metals do not. These dense materials push back aggressively against the cutting edge. They demand thicker shanks to withstand cutting forces without yielding. A thin shank will bend slightly during aggressive engagement in dense oak. This bending ruins dimensional accuracy on your finished parts.
Cut depth and flute length further complicate the physics. Sometimes you must reach deep inside a cavity. Long-reach cuts require maximum shank thickness. A long tool acts as an extended lever arm. The forces at the tip multiply exponentially at the collet. A thick shank offsets this dangerous leverage effect.
Consider your investment in high-end geometry. When purchasing a premium Solid Carbide End Mill, always opt for the thickest available shank. Solid carbide is incredibly sharp but notoriously brittle. It snaps easily if bent. A thicker shank protects your expensive tool from accidental snapping during rapid directional changes.
Using a massive 2-inch surfacing bit on a thin 1/4-inch shank.
Pushing a long-reach bit too fast through dense aluminum.
Ignoring the manufacturer's recommended maximum RPM for large diameters.
Failing to reduce feed rates when utilizing extended flute lengths.
You cannot force a massive bit into an incompatible spindle. Evaluating your machine limitations is the necessary first step before purchasing tooling. Hardware constraints dictate your absolute boundaries.
Examine your spindle and collet constraints closely. Standard entry-level routers usually accept only one or two sizes. A typical Makita or DeWalt trim router accommodates 1/4-inch collets exclusively. Some allow 3/8-inch upgrades. They physically cannot accept 1/2-inch shanks. In contrast, industrial electro-spindles utilize ER collet systems. An ER32 collet system comfortably handles 1/2-inch, 5/8-inch, or even larger metrics natively. You must buy tooling tailored to your machine's biological limits.
We must strongly address a dangerous common workaround. Many hobbyists use metal sleeves to fit a 1/4-inch bit into a 1/2-inch collet. We call these collet adapters or reducers. Adapters introduce significant implementation risks. Every additional layer of metal introduces microscopic misalignments. We call this misalignment "runout."
Runout causes the bit to wobble eccentrically instead of spinning perfectly on axis. This wobble forces one flute to take a massive chip while the other cuts nothing. Uneven chip loads cause rapid tool wear. Runout also chatters against the material, leaving terrible surface finishes. It is always better to buy a bit featuring a shank that natively matches your primary collet.
Finally, respect your machine's horsepower requirements. A 1/2-inch shank enables aggressive feed rates. However, driving a large cutter through dense material requires tremendous spindle torque. Weak spindles will bog down or stall completely. Furthermore, ensure the machine frame itself is robust. Driving heavy tools creates intense lateral pushback. Ensure your gantry is rigid enough to handle increased cutting forces without flexing out of square.
Industrial tooling decisions always come down to production economics. You must look past the sticker price. We need to evaluate how shank diameter influences your actual return on investment. Cost per cut matters more than initial purchase price.
Analyze the initial cost versus replacement frequency. A 1/2-inch bit costs significantly more upfront. It requires a much higher volume of raw tungsten carbide or hardened steel to manufacture. You feel this cost at checkout. However, 1/4-inch bits break exponentially more frequently under production stress. Buying four fragile bits costs more than buying one robust bit. A rigid shank survives minor programming errors. A thin shank simply snaps under the exact same pressure.
Next, calculate your production speed savings. Thicker shanks allow your machine to run faster. You can program higher feed rates safely. You can also program deeper step-downs per pass. A job requiring three passes on a thin shank might only require one pass on a robust shank. You must calculate the massive value of reduced cycle times. Getting parts off the table faster increases your daily shop throughput. Higher throughput directly increases revenue.
Use a simple shortlisting logic for future purchases. Choose 1/4-inch tooling only if your spindle physically dictates it. You should also choose it if you exclusively do shallow, highly detailed carving. Otherwise, default immediately to 1/2-inch tooling. Use it for all standard profiling, deep pocketing, and sheet nesting operations. If your machine supports it, the heavier shank always wins.
The optimal shank diameter is generally the largest one your spindle can securely accept. Your specific toolpath must also allow for the larger geometry. Maximizing rigidity solves almost all common machining frustrations. You gain better finishes, longer tool life, and faster cycle times.
Stop relying on collet reducers immediately. They introduce dangerous runout and destroy cut quality. Standardize your shop inventory around 1/2-inch tooling for all heavy structural operations. Reserve your 1/4-inch shanks strictly for delicate detail work. This clear division maximizes both tool life and daily cut quality.
Your immediate next step involves an equipment audit. Inspect your current collet system today. Identify whether you run ER20, ER25, or ER32 hardware. Ensure your very next tooling purchase natively matches your spindle's primary clamping diameter.
A: It is not recommended. While possible with very shallow passes and slow feed rates, it increases cycle times and the risk of breaking the bit due to deflection.
A: The shank is the smooth, cylindrical part held by the CNC collet. The cutting diameter is the width of the channel the flutes will carve. They can be identical (as in a standard end mill) or different (like a V-bit or surfacing bit).
A: No. A 6mm shank is 0.236", which is slightly smaller than a 1/4" (0.250"). Forcing a metric bit into an imperial collet will cause unsafe clamping, runout, and potential damage to the spindle. Always match the exact metric or imperial collet to the bit.
