How to Sharpen Router Bits by Hand Using a Diamond Paddle?

Dull tooling immediately introduces operational friction, causing burn marks, tear-out, increased feed resistance, and compromised edge profiles on high-value workpieces. Replacing premium Carbide Woodworking Router Bits carries significant replacement costs. Sending these tools out to professional sharpening services creates unavoidable downtime that halts production. Hand-sharpening with a diamond paddle serves as a highly effective, in-house maintenance protocol to extend tool life. This method works perfectly provided the operator understands the strict geometric limitations of hand-honing. You must exclusively target the flat inner face of the flute to restore the cutting edge without altering the critical outside profile.

• Preparation is Critical: Removing resin and pitch restores up to 50% of a bit's cutting efficiency before any abrasive is applied.
• Strict Geometric Rules: Hand-sharpening must exclusively target the flat inner face of the flute; altering the outer bevel destroys the bit's relief angle and clearance.
• Profile Limitations: Straight, spear-point, and simple profile bits are ideal for hand-sharpening, while spiral, compression, and strict-tolerance joinery bits require professional CNC grinding.
• Stroke Symmetry: Maintaining exact stroke counts across all flutes is mandatory to prevent high-RPM vibration and catastrophic tool failure.
• Tactile Feedback: Successful hand-honing relies on a light touch to feel the paddle registering flat against the carbide face, avoiding rounded edges.

The Economics and Realities of Sharpening Router Bits

Hand-sharpening operates strictly as a micro-maintenance strategy. It bridges the gap between peak factory sharpness and the eventual need for professional grinding or complete tool replacement. You must define the threshold where hand-sharpening remains economically viable on the shop floor. Hand-honing effectively removes microscopic wear and restores a keen edge. It does not fix heavily chipped, fractured, or thermally deformed carbide. Attempting to hand-sharpen severely damaged tooling wastes time and compromises workpiece safety.

Comparing hand-sharpening to professional grinding reveals distinct operational outcomes. Hand-sharpening extends the working life of the tool between professional grinds. It allows operators to quickly touch up an edge mid-project without breaking down the machine setup for long. Professional sharpening services utilize multi-axis CNC grinders bathed in coolant to completely restore factory geometry. Professional grinding removes significant material to establish a fresh edge, whereas hand-honing removes minimal carbide to simply refresh the existing geometry.

Every sharpening process inevitably reduces the cutting diameter of the tool. Removing material from the inner flat face shifts the cutting edge slightly inward. This microscopic reduction matters significantly for precision joinery. Undersized plywood dado bits or exact-tolerance dovetail bits will cut looser joints after sharpening. Conversely, this diameter reduction remains entirely negligible for edge-forming profiles like roundovers or chamfers, where a fraction of a millimeter difference does not impact the final visual profile.

Shop managers must evaluate the hourly rate of their operators against the cost of new tooling. Spending thirty minutes trying to salvage a heavily damaged standard straight bit makes no financial sense. However, spending three minutes touching up a custom molding profile bit keeps production moving and maximizes the return on that specific tool investment.

Required Tools and Materials for Precision Honing

Establishing a standardized sharpening station requires specific equipment designed for hard materials. Standard aluminum oxide stones cannot cut tungsten carbide. You must utilize monocrystalline diamond abrasives to effectively hone modern woodworking cutters. Setting up a dedicated sharpening area near the router tables encourages operators to maintain their tools regularly rather than pushing dull cutters until they fail.

Selecting the Right Diamond Abrasives

Portable diamond paddles offer exceptional maneuverability, making them ideal for most profiled bits. You can hold the bit stationary and articulate the paddle to match the flute face. Stationary diamond bench stones work best for large, straight cutters and removable carbide knives. You move the flat face of the cutter across the stationary stone. Monocrystalline diamonds provide superior durability and consistent cutting action compared to cheaper polycrystalline alternatives.

Grit progression dictates the quality of the final edge. Start with a coarse grit only for minor nick removal. Move to a fine grit for standard honing and edge restoration. Finish with an extra-fine grit for final polishing. Polishing the flute face reduces friction and minimizes future resin adhesion.

Chemical Pitch Removers and Lubrication

Wood resin and pitch bake onto the carbide at high temperatures. Standard workshop solvents often fail to break down this hardened chemical bond. You must use dedicated alkaline pitch and resin removers. Proper lubrication during the honing process prevents swarf from clogging the diamond abrasive. Use spray bottles to apply dedicated lapping fluids or water directly to the diamond surface. This ensures smooth cutting action and prolongs the life of the paddle.

Dry honing is a common mistake on the shop floor. Without fluid to float away the microscopic carbide particles, the diamond paddle quickly glazes over and stops cutting. A simple mix of water and a drop of dish soap provides adequate lubrication if commercial lapping fluids are unavailable.

Step-by-Step: Restoring Carbide Woodworking Router Bits

Implementation Phase 1: Deep Cleaning and Inspection

Begin by soaking the cutters in a dedicated resin remover. Allow the chemical to penetrate the baked-on pitch for several minutes. Scrub the flutes with a brass wire brush to remove all debris. Never use steel wire brushes, as they can chip the carbide edge. Inspect the cleaned tool under magnification. Look for micro-fractures in the carbide brazing and check for deep chips along the cutting edge. Discard any tool showing structural compromise.

1. Fill a small, shallow container with alkaline resin remover.
2. Submerge the cutting portion of the tool, keeping the bearing (if applicable) out of the liquid to prevent degreasing the bearing.
3. Soak for 5 to 10 minutes depending on the severity of the pitch buildup.
4. Scrub vigorously with a brass brush along the flute direction.
5. Rinse with clean water and dry immediately with compressed air.
6. Inspect the cutting edges under a strong light and a magnifying loupe.

Implementation Phase 2: Securing, Alignment, and Support

Absolute stability is required for precise hand-honing. Secure the bit using a collet block clamped in a vise, or use a dedicated vise with soft jaws. Do not clamp directly onto the carbide flutes. Introduce temporary support blocks or jigs to maintain a consistent angle. When you rotate the tool to sharpen opposite flutes, the support block ensures you apply the abrasive at the exact same orientation, maintaining symmetrical geometry.

Implementation Phase 3: The Flat-Face Honing Technique

Lay the diamond paddle perfectly flat against the radial face of the flute. You must develop tactile registration to execute this correctly. Hold the paddle lightly with finger pressure. Slide it across the face until you feel it register perfectly flat against the carbide. The motion should consist of quick, light, repetitive, and linear strokes. Explicitly avoid rocking the paddle. Never touch the outside profiled edge, as this instantly destroys the relief angle.

Implementation Phase 4: Stroke Counting and Pressure

Apply the "5 to 10 strokes" rule using light, consistent pressure. Count every stroke. You must replicate the exact number of strokes and pressure on every single flute. Removing more material from one flute creates a microscopic weight imbalance. This imbalance translates directly to severe dynamic runout and dangerous vibration when the tool spins at 20,000 RPM.

1. Apply a spray of lapping fluid to the 600-grit diamond paddle.
2. Register the paddle flat against the first flute.
3. Execute exactly 5 smooth, linear strokes across the entire length of the carbide face.
4. Rotate the tool to the next flute and repeat exactly 5 strokes.
5. Wipe the tool clean and inspect the edge. If it requires more work, repeat the process with 3 additional strokes per flute.

Profile-Specific Sharpening Strategies

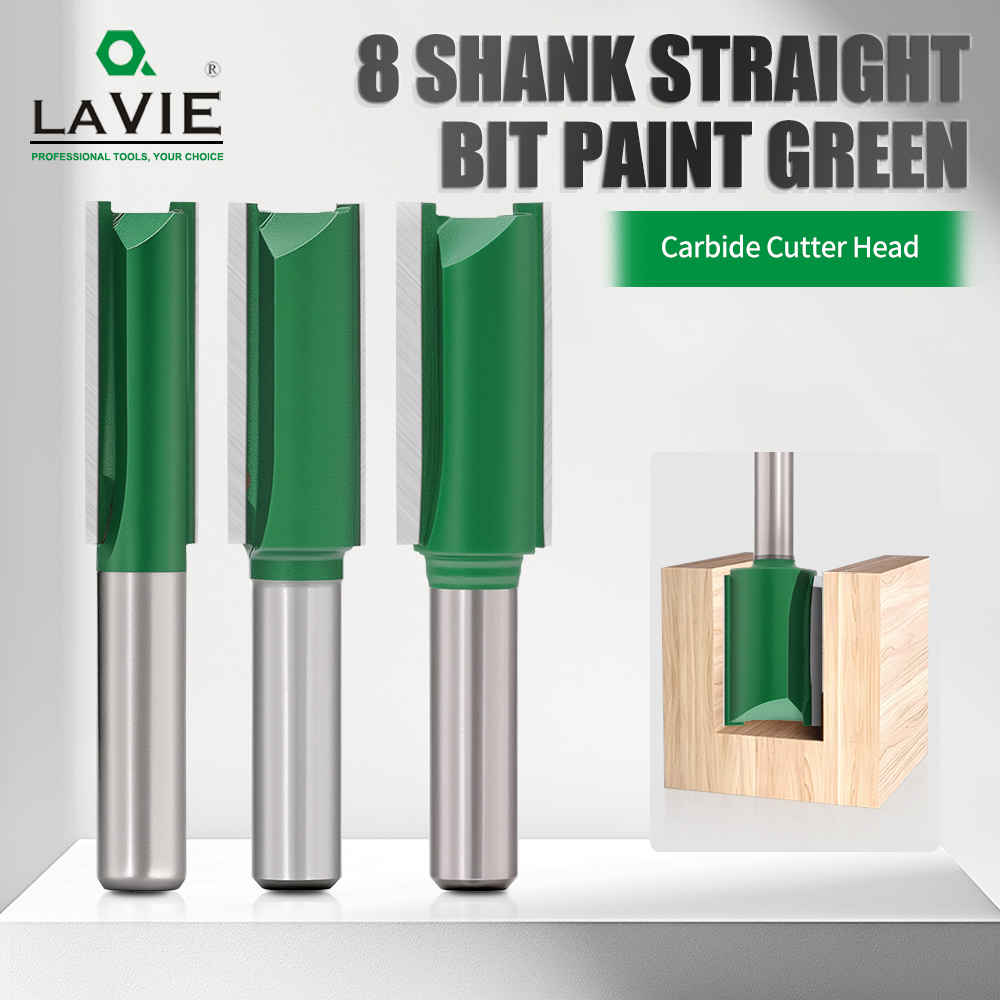

Straight and Flush Trim Bits

Straight bits utilize a straightforward flat-face approach. Register the paddle against the flat inner face and execute your strokes. For flush trim bits, you must check the bearing alignment after sharpening. Because sharpening reduces the cutting diameter, the cutter may no longer sit perfectly flush with the guide bearing. This results in a slight lip on the trimmed workpiece. If the lip becomes unacceptable for your tolerances, you must replace the bearing with a slightly undersized one or replace the tool entirely.

Chamfer and V-Groove Profiles

Navigating the angled geometry of Carbide Chamfer Router Bits requires careful paddle placement. Keep the paddle registered flat against the cutting face while avoiding the angled brazing at the bottom of the V-groove. Ensure your strokes remain parallel to the flute orientation to maintain the precise angle of the chamfer. Rushing this process often leads to rounding over the sharp point at the bottom of the V-groove, which ruins the crisp inside corner of the cut.

Spear-Point and Sign-Making Bits

Freehand sign-carving bits feature a dual-bevel step. Sharpening these requires turning the support to execute identical strokes on the opposite side bevels. You must maintain the exact center registration of the point. Uneven strokes will shift the spear point off-center, causing the tool to carve wider, asymmetrical grooves. Use a permanent marker to ink the flat face before honing; this provides immediate visual feedback to confirm your paddle is removing material evenly across the entire face.

Complex Edge-Forming Bits

Ogee and roundover profiles present challenges when accessing the inner face of curved flutes. Standard wide paddles often cannot fit into the tight concavities. You must use needle-style diamond files to reach these areas. Maintain the flat registration against the curved inner face, following the sweep of the flute without rocking the file. This requires significant practice to master the tactile feel of the curved registration.

The Spiral Limitation

Spiral, up-cut, down-cut, and compression bits cannot be hand-sharpened. Their continuous helical geometry makes it impossible to maintain a flat registration with a hand-held paddle. Attempting to hand-hone a spiral bit will destroy the cutting geometry. These tools require professional CNC grinding to restore their complex edges. Keep spiral tools clean to maximize their lifespan, but do not apply abrasives to them in the shop.

Implementation Risks, Quality Control, and Mitigation

Risk 1: Imbalanced Flutes and Router Vibration

Uneven material removal creates imbalanced flutes. A microscopic weight imbalance translates to severe runout and vibration at high speeds. This vibration ruins the surface finish of the workpiece and accelerates wear on the router's spindle bearings. Always count your strokes and apply uniform pressure to mitigate this risk. If a tool begins to vibrate abnormally after hand-honing, stop using it immediately.

Risk 2: Altering the Hook Angle

Improper paddle registration inadvertently changes the hook angle of the cutter. Failing to feel the flat orientation causes the operator to round over the cutting edge or steepen the angle. An altered hook angle leads to aggressive grabbing, kickback, or severe burning of the wood. Rely on tactile feedback to ensure the paddle remains perfectly flat. If you cannot feel the flat registration, do not proceed with the stroke.

Risk 3: End-of-Life Indicators

Knowing when to discard a tool prevents catastrophic failure. Inspect the tool regularly. Compromised braze lines indicate the carbide may detach during operation. Visible carbide chipping that requires more than 10 strokes to remove means the tool needs professional grinding. Blue heat discoloration on the steel body indicates severe thermal damage, and the tool must be replaced immediately.

Conclusion

Hand-sharpening with a diamond paddle provides a highly effective, low-cost method for maintaining edge quality on standard carbide profiles. This process succeeds only when strict geometric discipline is maintained. Clean the tool first, hand-hone for routine maintenance, send it to a professional for heavy wear, and replace it if chipped or if exact diameter tolerances are required.

• Audit your current inventory to separate dull cutters from those requiring professional grinding or disposal.
• Invest in a dedicated set of 600 and 1000 grit monocrystalline diamond paddles.
• Establish a routine cleaning schedule using dedicated alkaline resin removers.
• Implement a strict stroke-counting protocol for all hand-honing tasks to ensure dynamic balance.

FAQ

Q: Do you sharpen the bevel or the flat side of a router bit?

A: You must exclusively sharpen the flat inner face of the flute. Touching the outside bevel destroys the relief angle and clearance, ruining the tool's ability to cut.

Q: What grit diamond paddle is best for carbide router bits?

A: A 600-grit diamond paddle works best for general sharpening and edge restoration. Follow up with a 1000-grit paddle for micro-bevel polishing to reduce friction.

Q: Can you sharpen spiral router bits by hand?

A: No. It is impossible to maintain the continuous helical geometry by hand. Spiral and compression bits require professional CNC grinding.

Q: Why is my router bit burning the wood even after sharpening?

A: Burning occurs due to remaining pitch build-up, altered clearance angles from incorrect paddle registration, or running the router at an incorrect RPM for the specific cutter diameter.

Q: How many times can you hand-sharpen a router bit?

A: Diameter reduction and carbide thickness limit the process. Typically, you can perform 3 to 5 light hand-honings before the diameter change affects performance or professional grinding is required.

Q: Can you use sandpaper to sharpen carbide bits?

A: No. Tungsten carbide is too hard for standard aluminum oxide or silicon carbide sandpaper. You must use diamond abrasives to effectively cut and hone carbide.

Q: How do you ensure both cutting edges of a spear-point sign-making bit are sharpened equally?

A: Use a rotating support block and execute a strict, identical stroke count on both sides of the point. This maintains the precise center registration of the spear point.
