Running mismatched tooling in high-RPM woodworking equipment introduces severe mechanical and safety risks. When a shank does not seat perfectly inside the collet, the resulting tool runout causes extreme vibration. This vibration destroys cut quality, ruins spindle bearings, and creates the potential for catastrophic bit failure at 24,000 RPM. Woodworkers frequently face confusion regarding metric versus imperial shank sizing. Standard router collets have strict limitations, and matching cutting profiles to specific material removal rates requires precise measurement.
Understanding how to measure tooling dimensions eliminates these hazards. A systematic approach to evaluating shank diameters, cutting profiles, and collet hardware ensures safe and repeatable cuts. By verifying exact specifications before installation, operators protect their equipment and achieve superior precision on every project.
You must establish baseline measurements before purchasing or installing any tooling. Guessing dimensions leads to ruined workpieces and dangerous operating conditions. Success requires verifying the shank diameter, the cutting profile, and the overall length. These three metrics guarantee equipment compatibility and dictate the maximum safe material removal rate. In a shop environment, assuming a bit fits based on visual inspection is a fast track to equipment failure. You need hard data derived from proper measuring tools.
Accurate shank measurement requires digital calipers. Place the caliper jaws across the center of the shank cylinder. Verify the exact diameter down to the thousandth of an inch or hundredth of a millimeter. Common sizes include 1/4-inch, 1/2-inch, 6mm, 8mm, and 12mm. Visual estimation fails because manufacturing tolerances vary. A shank that looks like 1/4-inch might actually be a 6mm metric shank. Installing a 6mm shank in a 1/4-inch (6.35mm) collet prevents proper clamping force, allowing the bit to slip during operation.
To ensure accuracy, follow these measurement steps:

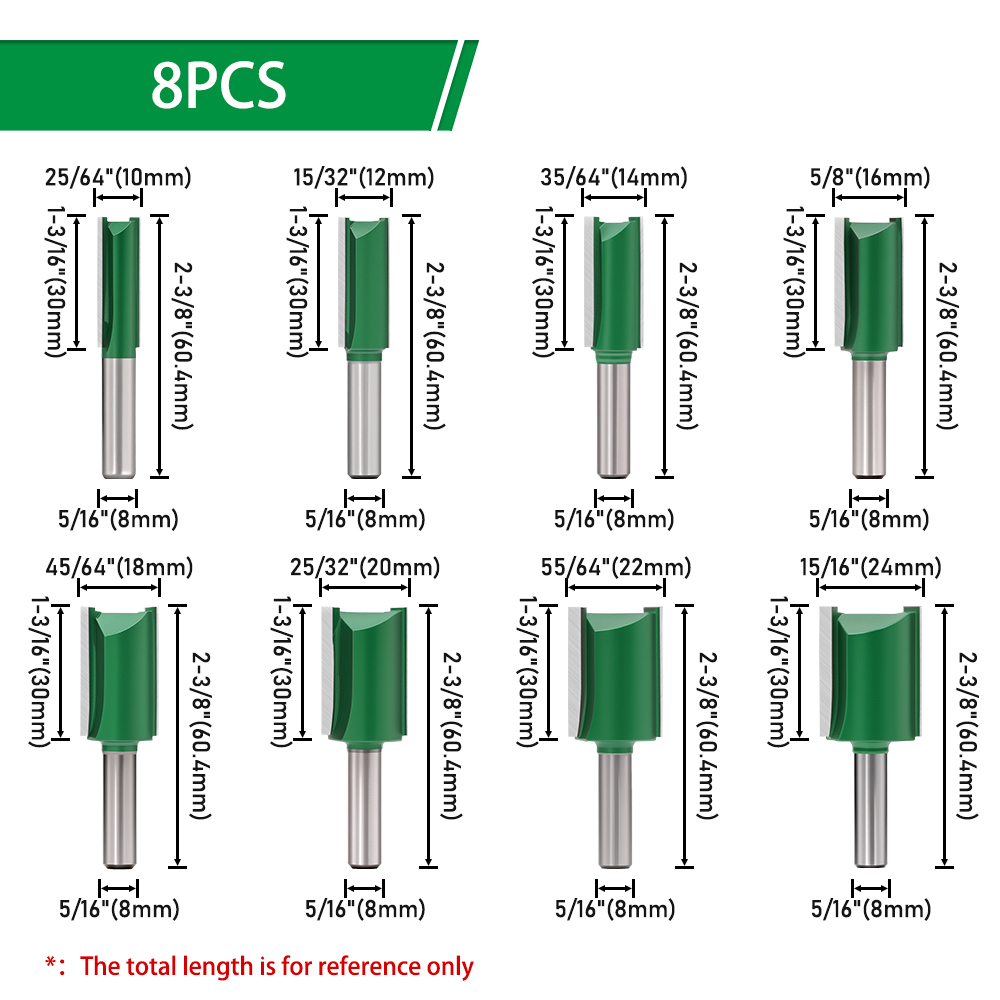

The maximum cutting diameter determines tool clearance. Measure across the widest point of the cutting edges. You must ensure this diameter clears your router baseplate opening and any router table inserts. Flute length represents the vertical cutting edge. Measure from the bottom tip of the carbide to the top edge of the flute. This dimension dictates your maximum safe depth-of-cut per pass. Exceeding the flute length causes the non-cutting shank to burn the wood and stresses the motor.
When evaluating the cut profile, consider the material thickness. If you are routing a 1-inch thick hardwood board, a flute length of 1-1/4 inches provides adequate clearance. However, attempting to bury a 2-inch flute fully into dense maple in a single pass will likely stall the router or snap the bit. Always plan your passes based on the measured flute length and the density of the stock.
Specialized assemblies like slotting cutters require independent measurements. These tools cut grooves for furniture trim and T-molding in cabinetry. They consist of an arbor shaft and an interchangeable cutter blade. You must measure the arbor shank to ensure it matches your collet exactly. The interchangeable cutter blade size does not affect collet compatibility, but the arbor shaft must seat securely. Treat the arbor exactly like a solid bit shank when verifying dimensions.
Calculate the usable cutting length by measuring the overall tool length and subtracting the required insertion depth. You need a minimum of 3/4-inch of shank inserted into the collet. If a bit measures two inches overall, and you insert one inch into the collet, you have one inch of usable reach. Never extend a bit further out of the collet to achieve a deeper cut. This reduces clamping surface area and exponentially increases the risk of shank deflection.
Standard collets use a single slit and rely entirely on the nut for compression. Self-releasing collets feature a snap-ring mechanism that pulls the collet out of the armature taper as you loosen the nut. Aftermarket upgrades offer tighter machining tolerances and multiple slits for even clamping pressure. Upgrading your hardware improves concentricity and reduces vibration. When you rely on factory-issue collets that have seen years of heavy use, you compromise the holding power required for safe operation.
Shank mass dictates structural stability. A 1/2-inch shank contains roughly four times the mass of a 1/4-inch shank. This increased mass drastically reduces deflection under heavy lateral loads. Less deflection means a smoother finish and longer tool life. You should only use 1/4-inch shanks when strictly necessary. Compact trim routers and delicate inlay work require smaller shanks due to physical space constraints. For all other applications, 1/2-inch hardware provides superior performance.
| Shank Size | Primary Application | Deflection Risk | Vibration Level |
|---|---|---|---|
| 1/4-inch (6.35mm) | Trim routers, light detail work, small profiles | High under heavy loads | Moderate to High |
| 8mm | European jigs, medium duty routing | Medium | Moderate |
| 1/2-inch (12.7mm) | Heavy stock removal, large panel raising, table routing | Very Low | Low |
Mixing standard measurement systems creates immediate hazards. Attempting to secure a 6mm shank in a 1/4-inch (6.35mm) collet leaves a 0.35mm gap. The collet cannot compress enough to bridge this gap safely. The bit will inevitably slip upward or downward during the cut. Conversely, forcing a 1/4-inch shank into a 6mm collet damages the collet jaws and prevents proper seating. Always match the exact measurement system of the shank to the collet.
Split-sleeve reducer adapters allow you to run a 1/4-inch bit in a 1/2-inch router. However, they introduce significant risks. Adapters create a secondary layer of tolerance stacking. They often cause uneven clamping pressure and rotational imbalance. The best mitigation strategy involves upgrading to dedicated Router Collet Chuck Sets for specific shank sizes. Replacing the entire collet cone and nut eliminates the need for split-sleeve adapters, yielding higher precision and zero slippage.
Improper clamping generates runout. Runout means the bit spins in an eccentric orbit rather than a perfect circle. This eccentric motion sends violent vibrations directly into the router’s spindle bearings. Over time, these vibrations destroy the bearing races. Bearing damage permanently degrades the router's motor, leading to expensive repairs or total tool replacement. Investing in correct collet sizing prevents this mechanical failure.
Specific bit geometries map directly to intended materials and cut types. You must evaluate the carbide angle, flute design, and bearing placement. These features determine material removal efficiency, heat generation, and surface finish. Selecting the wrong geometry for a specific wood species causes tear-out, burning, and excessive tool wear. You need to match the cutter profile to the exact operation you are performing.

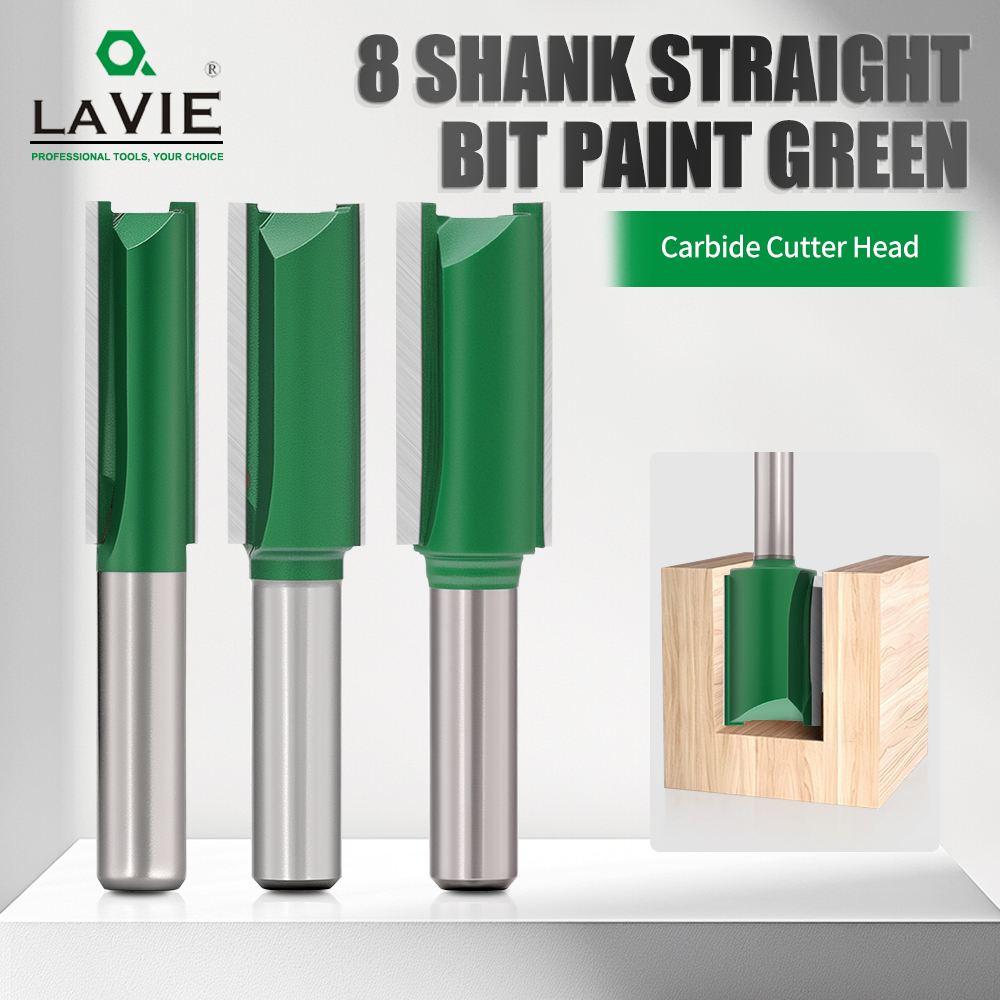

Standard Straight Router Bits excel at edge routing and cutting dadoes. They feature parallel cutting edges that shear material laterally. However, standard straight flutes cannot plunge directly into material because they lack bottom-cutting geometry. Bits designed with carbide plunge tips allow for vertical entry into the workpiece. You must evaluate material removal efficiency and tear-out risks. Straight flutes can cause splintering in highly figured wood species, requiring slower feed rates and shallower passes.
Spiral geometries offer distinct advantages over traditional straight flutes. Up-cut spirals pull chips out of deep mortises rapidly but can splinter the top surface. Down-cut spirals push fibers downward, leaving a pristine top edge but requiring slower feed rates to prevent chip packing. Compression spirals combine both actions for clean edges on double-sided laminates. Proper techniques with spiral Router Bits involve managing chip clearance carefully. You must adjust feed rates to avoid friction-induced burning, especially in dense hardwoods.
| Flute Type | Chip Evacuation | Surface Finish Quality | Best Use Case |
|---|---|---|---|
| Straight Flute | Moderate (lateral) | Good on edges, poor on top veneer | General edge routing, shallow dadoes |
| Up-Cut Spiral | Excellent (upward) | Rough top edge, clean bottom edge | Deep mortises, rapid material removal |
| Down-Cut Spiral | Poor (downward) | Clean top edge, rough bottom edge | Shallow routing on veneered plywood |
| Compression | Moderate (toward center) | Clean top and bottom edges | Melamine, double-sided laminates |
Pattern routing relies on guide bearings. Top-bearing configurations mount the bearing on the shank, above the cutter. These work best when the template sits on top of the workpiece. Bottom-bearing configurations place the bearing at the tip of the bit. These suit applications where the template sits underneath the workpiece. Analyzing your specific jig setup determines which bearing placement provides the safest and most accurate flush trimming.
Mechanical failures during installation usually stem from operator error. Failing to clean components, ignoring insertion depths, and over-tightening nuts compromise the system. You must treat installation as a precise mechanical procedure. Mitigate risks by establishing a strict setup routine before powering on the equipment. A clean, properly seated collet grips the shank with immense force, while a dirty or shallowly inserted shank acts as a dangerous projectile waiting to happen.
Industry standards dictate a strict insertion minimum. The shank must fill the collet's gripping area completely. This requires at least 3/4-inch of insertion for positive control. Inserting less than 3/4-inch concentrates all clamping force on a small section of the shank. This localized pressure causes the shank to bend or snap under lateral cutting loads. Always mark your shanks with a permanent marker at the 3/4-inch line to visually confirm adequate insertion depth before tightening.
Collet tightening involves specific physics. As you turn the collet nut, it pulls the collet cone and the bit downward into the armature taper. If the bit touches the bottom of the armature shaft before tightening, it prevents the collet from seating properly. The nut feels tight, but the collet has not compressed around the shank. To mitigate this, insert the bit fully until it bottoms out, then back it out 1/16-inch before applying the wrenches.
Resin buildup, galling, and metal fatigue destroy clamping force. Wood pitch bakes onto shanks and inside collet cones due to heat. This microscopic layer of debris prevents metal-to-metal contact, allowing the bit to slip. Inspect your hardware regularly for dark scoring marks. Clean components using brass wire brushes and dedicated resin solvent. Never use steel wool or abrasive sandpaper, as these alter the precisely machined dimensions.
Execute this maintenance routine weekly if operating in a high-volume shop:
Premium tooling costs more upfront but delivers lower long-term expenses. Budget alternatives dull quickly, cause tear-out, and risk catastrophic failure. You justify the cost of premium tooling through extended sharpening intervals, superior surface finishes, and protected spindle bearings. Evaluate tooling based on carbide quality, machining tolerances, and safety features. Buying cheap cutters often results in ruined lumber that costs far more than the price difference of a quality tool.
Micro-grain carbide thickness directly impacts longevity. Premium manufacturers use thicker, denser carbide brazed onto the steel body. This micro-grain structure resists chipping and holds a razor edge longer. Thicker carbide also allows for multiple professional sharpenings, extending the tool's lifespan significantly. Tight machining tolerances ensure the shank measures exactly to specification, guaranteeing a secure fit inside the collet.
Computer-balanced tooling reduces high-RPM vibration. Manufacturers remove tiny amounts of steel from the bit body to ensure perfect rotational equilibrium. This balancing extends the life of the router's spindle bearings and improves cut smoothness. Bits with poor runout specifications chatter against the wood, leaving a rippled finish that requires extensive sanding. You can often spot a balanced bit by looking for small drill marks on the steel body where material was removed during factory calibration.
Safety depends on controlled material removal. Anti-kickback designs feature enlarged steel bodies behind the cutting edges. This mass limits the bite depth per revolution. If you feed the material too aggressively, the steel body rubs against the wood, preventing the carbide from grabbing too much material at once. This engineering significantly reduces the risk of violent kickback during manual feed operations, protecting both the operator's hands and the workpiece.
Precise measurement with digital calipers and strict adherence to shank-to-collet matching remain non-negotiable requirements. These practices guarantee safety, ensure cut accuracy, and maximize tool longevity. Ignoring these mechanical realities leads to ruined projects and damaged equipment. Prioritize 1/2-inch shanks whenever your equipment allows for them. Invest in dedicated collet assemblies rather than relying on temporary split-sleeve adapters. Always match your flute geometry and carbide type to the specific material you intend to cut.
A: Yes, but it requires specific hardware. You must use either a 1/4-inch reducer sleeve or swap the 1/2-inch collet cone and nut for a dedicated 1/4-inch collet assembly designed for your router model. Dedicated assemblies are much safer and provide superior clamping force.
A: Measure the inside diameter of the collet cone with digital calipers. Alternatively, check the manufacturer's specifications in the manual. Most mid-to-full-size routers include both 1/4-inch and 1/2-inch collets in the box.
A: Insert the shank to the full depth of the collet's grip, which is usually at least 3/4-inch. Always bottom the bit out in the shaft, then pull it back 1/16-inch before tightening to ensure proper clamping and prevent the collet from binding.
A: Slippage occurs due to resin buildup, worn collet jaws, or mismatched sizing (like a 6mm shank in a 1/4-inch collet). Clean the shank and collet thoroughly with solvent. If slippage continues, replace the collet assembly immediately.
A: Straight bits shear material laterally and are ideal for edge routing. Spiral bits cut with a continuous shearing angle, pulling chips up or pushing them down, making them superior for deep mortises and clean laminate cuts.
A: No. Even if a 6mm bit feels tight in a 1/4-inch (6.35mm) collet, the clamping pressure is uneven. This gap causes severe runout, vibration, and eventual slippage during operation. Always match the exact measurement system.
