Standard off-the-shelf tooling frequently falls short when architectural millwork, custom furniture production, or specialized industrial manufacturing requires proprietary or highly complex profiles. Fabricators and machinists often face significant challenges when standard tools cannot match historical trim, create unique joints, or process advanced composites efficiently. Utilizing standard bits for non-standard applications usually requires multiple passes, increases labor costs, compromises finish quality, and accelerates tool wear. You end up wasting valuable spindle time trying to force a generic profile to do a highly specific job.
Fabricators must decide when the upfront cost of custom tooling is justified by long-term production efficiency. Evaluating custom tooling requires an understanding of the engineering tolerances, material science, and manufacturing processes involved. This guide breaks down how custom Router Bits are engineered and manufactured, establishing the technical criteria necessary for evaluating custom tooling manufacturers.
Material dictates ROI: The choice between High-Speed Steel (HSS), carbide-tipped, and solid carbide directly impacts tool lifespan, edge retention, and suitability for high-volume production.
Geometry is application-specific: Custom profiles require precise calculations of hook, shear, and clearance angles tailored to the specific material being cut (e.g., hardwoods, composites, or stone).
Precision manufacturing ensures safety and finish: High-quality custom bits rely on advanced CAD/CAM modeling, CNC grinding, and dynamic balancing to eliminate runout and chatter.
Defining the threshold where standard tooling becomes a liability is critical for maintaining profitability on the shop floor. Assess labor hours spent on multi-pass operations versus the efficiency of a single-pass custom profile. When operators must use three different standard tools to achieve a single complex molding profile, the setup time and margin for error increase exponentially. A custom tool condenses these operations, reducing cycle times and ensuring consistent profile geometry across the entire production run. We see this constantly in architectural millwork where matching a 100-year-old casing requires exact precision.
Standard tools often fail when specific architectural matches are required. Scenarios where standard Multi-Angle Chamfer Router Bits or basic edge-forming tools cannot achieve the required non-flat profiles demand engineered solutions. Comparing the economics of short-run custom jobs against high-volume production runs helps determine the appropriate tooling investment. For one-offs, modified standard tools might suffice. High-volume runs require highly durable custom geometries designed for continuous operation without degrading finish quality.
To better understand the operational differences, consider the following comparison between standard and custom tooling approaches in a production environment.
Operational Factor | Standard Tooling Approach | Custom Tooling Approach |
|---|---|---|
Setup Time | High (Requires multiple tool changes and test cuts) | Low (Single tool setup for the complete profile) |
Passes Required | Multiple passes to build the profile | Single pass execution |
Finish Consistency | Variable (Depends on operator skill and machine alignment) | Highly consistent across thousands of linear feet |
Tool Wear | Uneven wear across multiple bits | Optimized wear distribution based on custom geometry |
Labor Allocation | Intensive monitoring and manual adjustments | Automated, set-and-forget operation |
When you analyze the data, the shift from standard to custom tooling often hinges on the volume of the run. If you are running 10,000 linear feet of custom crown molding, the time saved by eliminating a second pass easily pays for the engineering and manufacturing of a dedicated tool. Furthermore, the reduction in sanding and finishing labor directly impacts the bottom line. You must calculate the exact break-even point based on your shop's hourly rate and machine burden rate.
High-Speed Steel (HSS) serves well for short-run, low-volume custom profiles. HSS can be milled quickly and affordably, making it suitable for rapid prototyping or small batches in softwoods. However, it suffers from rapid edge degradation in abrasive materials like MDF or composites. For professional production, HSS is rarely the optimal choice due to frequent sharpening requirements and resulting downtime. We only recommend HSS when cutting highly specific, non-abrasive materials where a razor-sharp edge is prioritized over longevity.

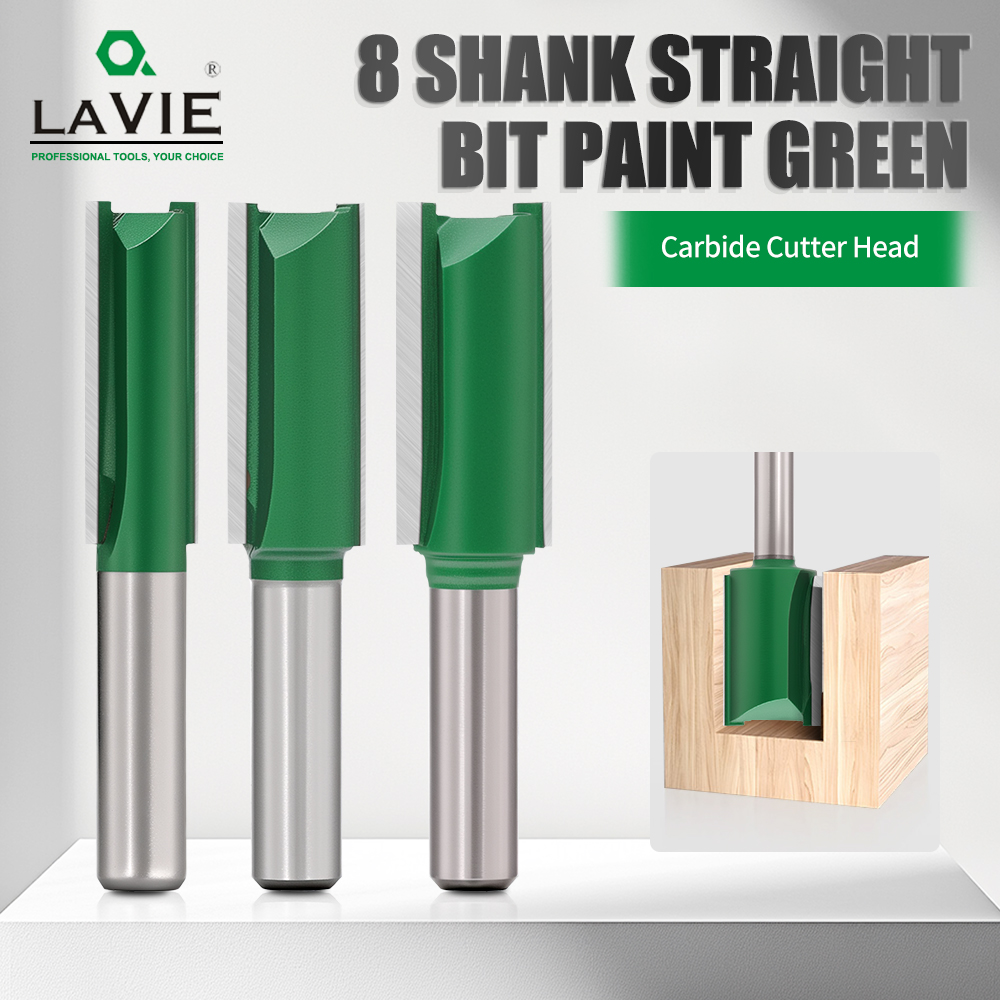

Carbide-tipped tooling represents the industry standard for custom woodworking bits. This construction balances the shock-absorbing properties of a steel body with the wear resistance of micro-grain, high-grade carbide steel tips. These carbide inserts hold their edge far longer than HSS, providing a stable, long-lasting cutting edge for hardwoods and engineered panels. The steel body absorbs vibration, reducing the risk of brittle carbide fracturing under heavy loads.
For specialized, high-precision CNC routing, manufacturers often utilize Solid Carbide CNC End Mills. These tools provide superior rigidity and heat tolerance required for continuous industrial machining of composites, non-ferrous metals, and dense hardwoods. Solid carbide eliminates the flex associated with brazed joints, ensuring exact tolerances in deep, narrow profiles. Contrast these professional-grade engineered materials with amateur makeshift cutters filed down from old saw blades. Non-engineered tooling poses severe safety, balance, and quality risks in high-RPM operations.
Here is a breakdown of the primary materials used in custom tooling and their specific applications:
High-Speed Steel (HSS): Best for short runs in softwoods. Offers the sharpest initial edge but dulls rapidly in engineered materials.
Carbide-Tipped (Brazed): The workhorse of the industry. Excellent for hardwoods, plywood, and general millwork. Balances cost with durability.
Solid Carbide: Essential for high-volume CNC operations, composites, and abrasive materials. Offers maximum rigidity and heat resistance.
Polycrystalline Diamond (PCD): Used for extreme high-volume runs in highly abrasive materials like laminate flooring or fiberglass.
Selecting the wrong material guarantees premature tool failure. If you run a brazed carbide bit in a high-speed composite application, the heat buildup will eventually melt the brazing alloy, causing catastrophic failure. Always match the cutting material to the workpiece density and abrasiveness.
Translating a physical wood sample, a 2D architectural drawing, or a DXF file into a precise 3D tool model requires advanced reverse engineering and CAD/CAM software. Replicating non-flat, complex historical, or legacy molding profiles from damaged customer trim samples involves precise optical scanning. Engineers digitize the physical impression, clean up the geometry in CAD, and design a tool profile that exactly matches the required output, adjusting for material spring-back and cutting dynamics.
Calculating cutting geometry determines the tool's performance. The hook angle is adjusted for aggressive material removal versus a smooth finish. Positive hook angles cut aggressively, while lower angles provide a scraping action for harder materials. Shear angles are designed as up-shear or down-shear to manage chip evacuation and prevent tear-out on delicate veneers. The clearance angle ensures the heel of the bit does not rub against the material, preventing friction burns and excessive heat buildup.
Dynamic balancing is critically necessary for custom bits. Balancing prevents vibration, spindle wear, and poor surface finishes, especially at high RPMs. An unbalanced tool creates chatter marks on the workpiece and can cause catastrophic spindle failure over time. Manufacturers use precision balancing machines to remove minute amounts of material from the tool body, ensuring the center of mass aligns perfectly with the axis of rotation.
The engineering phase involves several critical steps to ensure the final tool performs flawlessly:
Profile Digitization: Scanning the physical sample or importing the DXF file into the CAD environment.
Geometry Optimization: Adjusting hook, shear, and clearance angles based on the target material.
Mass Calculation: Determining the tool's weight and center of gravity to plan for dynamic balancing.
Interference Checking: Simulating the tool path to ensure the bit body does not collide with the workpiece or the machine spindle.
The manufacturing process begins with blank preparation and connection machining. The high-strength steel alloy body undergoes initial machining on CNC lathes. This includes turning the connection interface to exact tolerances. Standard cylindrical shanks are turned to 1/2", 1/4", or specialized CNC straight shanks. For specific applications, manufacturers create specialized 5/8"-11 threaded connections for wet-use stone edge profiling on handheld angle grinders, or HSK/ISO interfaces for industrial CNC spindles.
Milling and brazing follow the blank preparation. CNC mills create precise pockets in the steel body to receive the carbide inserts. The high-frequency induction brazing process secures the carbide to the steel body using specialized silver solder alloys. This process requires exact temperature control to ensure a strong bond without compromising the carbide's metallurgical structure or warping the steel body.
Multi-axis CNC tool and cutter grinders then shape the carbide to the exact custom profile. These machines use precision diamond wheels to grind the complex geometry, ensuring micron-level accuracy. Finally, quality control and verification involve optical comparators and digital measuring equipment. Technicians verify the finished bit matches the original CAD drawing perfectly before test cutting, ensuring the tool will produce the exact profile required by the customer.
The grinding phase is where the true precision happens. Operators must select the correct diamond wheel grit to achieve a mirror finish on the carbide face. A rough grind will leave microscopic serrations on the cutting edge, which transfer directly to the wood as visible mill marks. We insist on a multi-stage grinding process, moving from coarse material removal to a fine polishing pass.
Manufacturing Stage | Equipment Used | Critical Tolerance Focus |
|---|---|---|
Blank Turning | CNC Lathe | Shank concentricity and diameter accuracy |
Pocket Milling | 3-Axis CNC Mill | Pocket depth and seating angle for carbide |
Brazing | Induction Heater | Temperature control and void-free solder flow |
Profile Grinding | 5-Axis CNC Grinder | Edge sharpness and exact profile matching |
Dynamic Balancing | Balancing Machine | Vibration reduction at operating RPM |
A manufacturer’s ability to guarantee exact profile matching on the first order and subsequent replacement orders defines their reliability. Strict tolerances and repeatability ensure that molding produced today matches molding produced three years from now. Assess standard lead times for CAD approval and final manufacturing against your project deadlines. Delays in custom tooling delivery can halt entire production lines, making reliable turnaround times essential.
Consider the impact of domestic versus import manufacturing. Established tooling manufacturers often provide better communication clarity, direct engineering support, and stringent quality assurance. Transit times are generally shorter, and resolving technical issues is more straightforward when dealing with regional partners. Additionally, evaluate post-purchase support. Precise resharpening services that maintain the original profile geometry without altering the cutting diameter beyond acceptable limits significantly extend the tool's usable life.
When vetting a new tooling partner, you should ask specific technical questions to gauge their capabilities. Do they use optical comparators to verify the final grind? Can they provide a detailed CAD overlay of the proposed tool against your original DXF file? What is their standard protocol for dynamic balancing? A reputable manufacturer will have transparent answers and documented procedures for all these critical quality control steps.
Premature tool wear or breakage represents a significant risk. Require the manufacturer to provide specific feed and speed parameters tailored to the custom bit's diameter, mass, and the target material. Operating a large-diameter custom profile bit at speeds intended for small straight bits causes burning, excessive vibration, and rapid carbide degradation. Proper chip load calculations prevent these issues.
Tool deflection in deep profiles compromises finish quality and dimensional accuracy. Specify maximum shank diameters and minimize tool stick-out to maximize rigidity. Utilize solid carbide tools for deep, narrow profile requirements where rigidity is paramount. Verify compatibility with existing machinery before ordering. Check spindle capacity, shank sizes, maximum outer diameter clearances in the router base or CNC dust boot, and weight limitations for the spindle to ensure safe and effective operation.
Another common implementation failure occurs during the initial setup phase. Operators often fail to tram the spindle or check for runout in the collet before installing a heavy custom tool. Even a perfectly balanced custom bit will vibrate violently if the machine's collet is worn or the spindle bearings are failing. Always perform a comprehensive machine maintenance check before running large custom profiles.
Verify collet condition and replace if any scoring or wear is visible.
Measure spindle runout with a dial indicator to ensure it falls within acceptable limits.
Calculate the correct RPM based on the tool's maximum diameter to maintain a safe surface speed.
Perform a test cut in scrap material of the exact same density as the final production run.
Inspect the test cut for chatter marks, burning, or dimensional inaccuracies.
Custom tooling requires a disciplined approach to machine operation. You cannot simply chuck a massive profile bit into a router and push material through it blindly. You must control the feed rate meticulously, ensuring the chip load remains constant. If you feed too slowly, the bit will rub and burn the wood. If you feed too quickly, you risk snapping the shank or overloading the spindle motor.
To further mitigate risks, establish a strict tool life management protocol. Do not wait for the tool to start burning material before sending it out for sharpening. Track the linear footage run with each tool and establish a baseline for when the edge begins to degrade. Pulling the tool slightly before it becomes completely dull ensures that the sharpening service only needs to remove a minimal amount of carbide, preserving the tool's diameter and extending its overall lifespan.
We also highly recommend keeping a backup custom tool on hand for critical production runs. If a hidden staple or knot destroys the primary tool mid-run, waiting three weeks for a replacement will devastate your production schedule. The cost of a duplicate tool is negligible compared to the cost of a halted assembly line.
Gather physical samples or accurate CAD files of the required profile to provide exact specifications to the manufacturer.
Determine the total linear footage of the production run to select the appropriate material, choosing between HSS, brazed carbide, or solid carbide.
Submit your specifications to specialized tooling manufacturers for technical review and request a detailed CAD overlay for approval.
Verify your machine's spindle capacity, collet condition, and maximum diameter clearances before finalizing the tool design.
Establish a strict tool life management protocol to track linear footage and schedule timely resharpening.
A: Standard lead times generally range from two to six weeks. This includes CAD design, customer approval, machining, brazing, grinding, and quality control. Expedited services may be available depending on the manufacturer's current production schedule.
A: Yes. Manufacturers can reverse-engineer a custom bit from a physical wood sample. They use optical scanners or precision measuring tools to digitize the profile, ensuring the resulting tool cuts an exact match of the original trim.
A: Custom bits for hand routers typically feature bearings for edge guiding and standard 1/2" or 1/4" shanks. CNC custom bits lack bearings, often use specialized shank interfaces, and are engineered for higher feed rates and specific chip evacuation paths.
A: A high-quality custom carbide-tipped bit can usually be resharpened 3 to 5 times, depending on the thickness of the original carbide and the extent of the wear. Resharpening slightly reduces the cutting diameter, which must be accounted for in precise setups.
A: Yes. Large diameter custom bits require robust connections to handle increased mass and rotational forces. A 1/2" shank is the minimum for large hand router bits, while industrial CNCs utilize heavy-duty tool holders to ensure stability and safety.
A: Yes. Custom tooling can be engineered for stone, plastics, and advanced composites. These bits require specific carbide grades, specialized geometries, and sometimes different connection types, such as threaded arbors for wet stone profiling.
