Operating raised panel tooling involves high stakes in any woodworking shop. These cutters rank among the largest and heaviest tools you will ever mount in a collet. Improper use creates significant safety hazards and provides a quick way to ruin expensive hardwood stock. Achieving professional-grade, burn-free cabinet doors requires skill and a deep understanding of machine dynamics. You must mitigate the physical risks of high-mass tooling, which include severe kickback, intense vibration, and sudden tear-out.
Woodworkers often struggle to balance safety with flawless execution when milling door panels. Large cutters generate immense centrifugal force, demanding strict operational boundaries. Pushing stock past a spinning three-inch block of steel requires precision, not guesswork. We use a systematic approach to tooling setup, RPM management, and multi-pass cutting techniques. This methodology ensures operator safety while delivering perfectly executed panel profiles every single time.
Understanding the physical mechanics of large-diameter cutters is essential before you ever flip the power switch. You must define what constitutes a successful cut before turning on the machine. A successful raised panel cut exhibits zero burn marks across the entire profile. It features crisp, distinct profile lines that require minimal sanding. The resulting tongue must be perfectly flat and uniform in thickness. This allows it to fit seamlessly into the receiving grooves of your stiles and rails without forcing the joint or leaving sloppy gaps.
Mass and diameter dictate strict safety protocols in the shop. Large-diameter tooling operates under extreme physics. Increased mass amplifies centrifugal force exponentially as the RPM climbs. A standard straight bit spinning at 24,000 RPM behaves predictably. A three-inch panel raiser at the same speed becomes a lethal hazard. The outer edge travels at a massive velocity, which requires specialized balancing during manufacturing. It also mandates strict speed limitations during operation to prevent the cutter from vibrating apart or destroying the router bearings.
You must choose between horizontal and vertical panel raisers for your specific shop setup. Each style presents unique operational demands and requires different table configurations.
| Bit Orientation | Center of Gravity | Stock Orientation | Table Requirements | Horsepower Needs |
|---|---|---|---|---|
| Horizontal | Low and stable | Flat on the table | Wide throat plate opening | 3+ HP recommended |
| Vertical | High | On edge against fence | Tall auxiliary fence | 1.5 to 2 HP sufficient |
Horizontal bits offer a safer center of gravity. You route the panel flat on the table surface. This orientation provides excellent stability because gravity works with you, keeping the wide face of the board registered against the tabletop. However, it demands a wider throat opening in your router table plate to accommodate the massive cutter. You also need a heavy-duty lift to support the weight of the router and the bit without sagging.
Vertical bits allow routing with the panel standing on edge. You press the stock against a tall fence. Vertical bits are useful for lower-horsepower routers because they generally have a smaller cutting diameter and remove less material per revolution. They require meticulous fence alignment. You must use robust featherboard support to prevent the tall stock from tipping away from the fence, which would instantly ruin the profile and potentially cause kickback.
You must never use raised panel cutters in a handheld router. Handheld routing with a 3.5-inch bit leads to uncontrollable torque. The bit will grab the wood and violently twist the router out of your hands. This causes severe injury and destroys the workpiece. Always mount these cutters in a secure, heavy-duty table designed for professional milling.
Your table setup requires specific features to handle the stress. A rigid router table needs a heavy base, often constructed from thick MDF, cast iron, or welded steel. Mass absorbs the low-frequency vibration generated by heavy cutters. The tabletop must remain perfectly flat. Any dip or bow in the surface translates directly into an uneven panel tongue. You need an adjustable, split-fence system. This allows you to close the gap around the bit tightly, providing maximum support to the workpiece as it passes the cutter.
Many woodworkers encounter the throat plate insert hitch during initial setup. Standard table insert rings are often too narrow. They cannot clear 3-inch to 3.5-inch horizontal bits. You must select the correct insert ring that provides clearance while still supporting the wood near the cut. If your widest ring still rubs the cutter, remove it entirely. Ensure the bit spins freely by hand before applying power. Never force a bit through an insert ring that is too tight.
Speed control prevents disaster when spinning large mass. You must map specific bit diameters to their maximum safe RPMs. Running a massive bit too fast causes intense friction. It burns the wood and degrades the carbide edges rapidly. It can also cause the bit shank to bend or snap under the centrifugal load.
Hardware requirements are non-negotiable for panel raising. You need a 3+ horsepower router. It must feature a 1/2-inch collet. Smaller 1/4-inch shanks cannot handle the rotational mass and will shear off. A powerful motor prevents stalling mid-cut. It powers through dense hardwoods like oak and maple without dangerous vibration or RPM drops.
Follow the 1/16-inch rule for collet seating every time you change a bit. Never bottom out the shank of large Router Bits inside the collet. Bottoming out prevents the collet from clamping properly as it tightens. It also transfers motor heat directly to the bit, which can weaken the brazing holding the carbide. Drop the shank to the bottom of the collet. Pull it back out 1/16-inch to 1/8-inch. Then, fully torque the collet nut with your wrenches. This ensures a secure, vibration-free grip on the shank.
Consistent stock contact guarantees a uniform cut across the entire panel. Implement a strict featherboard strategy for every pass. Place featherboards to apply downward pressure before the bit. Place another to apply downward pressure after the bit. Use additional featherboards mounted to the table to apply inward pressure against the fence. This locks the panel into a predictable path and keeps your hands far away from the cutting zone.
Utilize zero-clearance fencing to prevent tear-out. Create an auxiliary face for your split fence using MDF or smooth plywood. Plunge the spinning bit slowly into the wooden auxiliary fence to create a custom pocket. The zero-clearance setup supports wood fibers right up to the cutting edge. It drastically reduces tear-out during the cut, especially when routing across the end grain.
Wide-diameter cutters generate massive chip volumes in a matter of seconds. The waste can rapidly clog the cutter path if not evacuated immediately. Trapped chips cause friction heat. This leads to severe burning on the wood profile. It also causes dangerous workpiece lift, where packed debris pushes the panel away from the table or fence, ruining the depth of cut.
Implement a dual-source extraction setup for optimal safety. Connect a high-CFM dust collector to the fence-mounted dust port to catch chips thrown backward. Install a below-table collection shroud attached to the router lift to pull fine dust downward. This dual approach safely clears waste in real-time. It keeps the cut path clean, prevents heat buildup, and maintains a safe working environment.
Grain direction strategy dictates your cut sequence and determines the quality of the final corners. Always route the end-grain sides first. Follow this with the long-grain sides. Cutting end grain often causes blowout at the trailing edge as the bit exits the wood. When you route the long-grain sides afterward, the cutter removes that blowout entirely. This leaves a pristine, sharp corner without needing filler or excessive sanding.
Optimize your feed rate carefully based on the wood species and bit sharpness. Balancing feed speed requires practice and listening to the machine. Pushing too fast causes chatter. It forces the bit to chop rather than slice, leaving a rippled surface. Pushing too slow causes friction burns, especially on cherry or maple. Listen to the router motor. Keep a steady, continuous pace without stalling the machine or pausing mid-cut.
Never attempt a full-depth cut with a panel raiser. Break down the process into incremental passes to maintain control. Take three to four shallow cuts to reach the final profile depth. This preserves the tool's carbide edges by reducing heat. It protects the wood's grain integrity from massive shear forces. It also keeps your fingers safe from aggressive kickback caused by taking too heavy of a bite.
You can adjust the fence or the bit height to achieve these multiple passes. Stepping the fence back to reveal more cutter is one method. Raising the bit height incrementally is another. For horizontal bits, raising the bit height is generally more stable. It keeps the fence stationary and perfectly aligned. This ensures the panel tongue remains perfectly parallel with the table surface throughout the entire milling process.
Raised panels fit into a broader cabinet door ecosystem. They require specific companion tooling to function properly. You must construct the surrounding frame precisely to hold the panel. Matched rail and stile cutters handle the inner edges of the door frame. They ensure the tongue of the raised panel fits perfectly into the frame's receiving groove, allowing for seasonal wood movement without rattling.

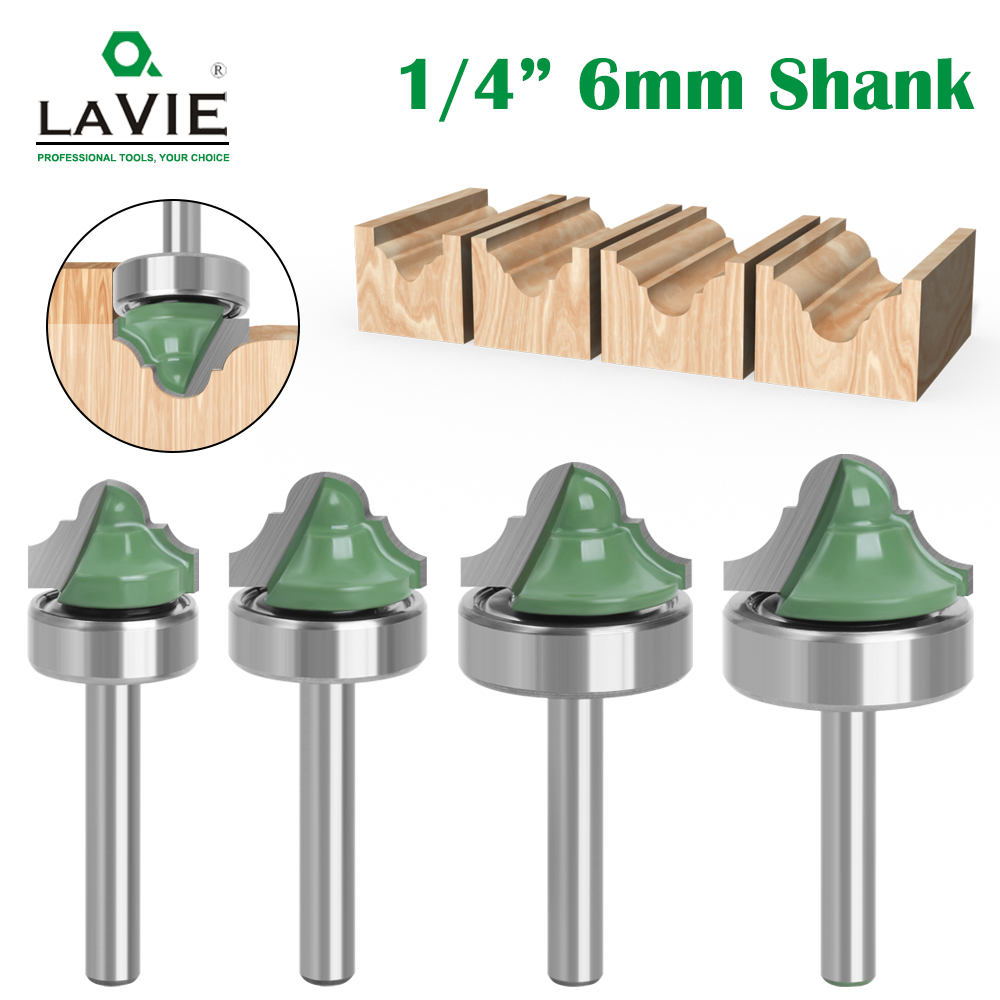

You can enhance the design with decorative profiles on the frame itself. Consider integrating Double Roman Ogee Router Bits into your workflow. Use them on the inner or outer edges of the surrounding stiles and rails. This creates a cohesive, traditional aesthetic. It matches or contrasts the classic profile of the raised panel beautifully, adding depth and shadow lines to the finished door.
Final finishing steps elevate the tactile quality of the cabinetry. Utilize Corner Round Router Bits to soften sharp exterior edges on the assembled doors. Running the assembled door frame past a round-over bit improves finish adhesion. Paint and stain hold better to eased edges than sharp corners, which tend to chip or wear through quickly. It also makes the final cabinet door feel substantial and professional to the touch.
End grain routing frequently results in tear-out, ruining the panel edge. The cutter exits the wood and blows out the unsupported fibers. Use a backer board to support the trailing edge of the panel. A push block with a sacrificial heel works perfectly for this application. Alternatively, utilize a heavy-duty coping sled. This locks the panel square to the fence and backs up the cut entirely, eliminating blowout.
Certain wood species burn easily under high-speed cutters. Cherry and Maple are highly prone to friction burns due to their dense, tight grain structure. Analyze the relationship between RPM, feed rate, and wood species. Lower the RPM slightly if burning occurs consistently. Increase your feed rate to keep the wood moving past the hot carbide, preventing heat from transferring into the wood fibers.
Leave a paper-thin cut for the final pass to guarantee a perfect surface. Set the bit to remove just 1/32-inch of material for the last run. Make this final pass rapidly. The light cut shaves off preliminary burn marks left by slower, heavier passes. It removes tool chatter marks, leaving a surface that requires minimal sanding before finishing.
Panels sometimes fail to fit into the rail and stile grooves during dry assembly. This usually stems from inconsistent downward pressure during routing. Varying stock thickness from the planer also causes this issue. If the panel lifts off the table slightly during the cut, the resulting tongue becomes too thick to fit the groove.
Recalibrate your featherboard pressure immediately. Ensure they press the stock firmly against the table without making it impossible to push. Use a test strip of identical stock. Verify the tongue thickness before routing the final panels. Adjust the bit height in micro-increments until the fit is snug but not forced into the stile groove.
Vibration ruins the cut surface and fatigues the operator. It also damages router bearings over time. Use a diagnostic checklist to isolate the problem quickly.
Premium bits feature thicker micro-grain carbide brazed to the steel body. Thick carbide allows for multiple professional sharpenings over the life of the tool. This extends the lifespan of the tool significantly, offsetting the higher initial cost. Examine the shear angle of the cutting edges before purchasing. High-quality cutters feature an aggressive shear angle. They slice wood fibers cleanly at an angle rather than chopping them bluntly. This reduces tear-out, requires less horsepower, and leaves a superior finish.
Safety standards matter immensely with large tooling. Look for bits featuring closed-body, anti-kickback designs. These profiles limit the chip size per revolution by restricting how far the wood can feed into the cutter. They prevent the cutter from biting too deeply into the wood at once. This drastically reduces the risk of the wood being violently grabbed. Ensure the manufacturer guarantees computer-controlled mass balancing. A balanced bit spins smoothly at 12,000 RPM without destroying your router bearings or vibrating the table.
A: No. Raised panel cutters require a 1/2-inch shank. The immense mass and diameter generate torque that will easily bend or snap a 1/4-inch shank, causing severe injury and damage.
A: Burning occurs when the RPM is too high or the feed rate is too slow. Friction builds up rapidly. Lower your router speed to 10,000 RPM and maintain a steady, continuous feed rate.
A: Yes. Handheld operation of a 3-inch or larger bit is extremely dangerous. The torque will cause catastrophic kickback. A sturdy router table is an absolute safety requirement.
A: If the tongue won't fit the groove, raise the horizontal bit height slightly. Make another pass. Ensure you use featherboards to keep the panel completely flat against the table.
A: Always cut the two end-grain sides first. Then cut the two long-grain sides. The long-grain cuts will clean up any tear-out left behind by the end-grain passes.
A: Never cut full depth in one pass. Take three to four incremental passes. Adjust the bit height or fence position slightly for each pass to reduce stress on the tool and wood.
