Professional cabinet door joinery demands strict tolerances where even a 1/64-inch misalignment causes visible gaps, weak joints, or rattling panels. When you build custom kitchens or bathroom vanities, standardizing your frame-and-panel construction requires tooling capable of adapting to varying material thicknesses. Modern undersized plywood presents a specific challenge, as standard fixed cutters leave panels loose and prone to vibration. You need a system that maintains perfectly flush cope-and-stick joints regardless of the sheet goods you source.
Rail and stile Router Bits provide the definitive solution for scalable, repeatable cabinet door production. By utilizing adjustable cutter stacks and precise shimming, you can match your groove width exactly to your panel thickness. This guide outlines how to evaluate bit types, calibrate your shop equipment, and execute precise cuts to eliminate material waste and ensure long-term structural integrity in your cabinet doors.
Frame-and-panel doors must accommodate seasonal wood movement while maintaining absolute frame rigidity. Solid wood panels expand and contract across their grain depending on ambient humidity. If you trap a solid panel in a rigid glued frame, the expansion forces will eventually blow the joints apart or split the panel itself. Rail and stile joinery solves this mechanical problem by creating a floating panel housed within a structurally sound outer frame.
The joint relies on two interlocking profiles milled directly into the frame members. The stile cut runs longitudinally along the grain of your vertical pieces. This sticking cut creates the decorative inner edge and the groove that houses the panel. The rail cut, commonly called the cope cut, is milled across the grain at the ends of the horizontal pieces. This cope perfectly mirrors the stile's decorative profile, allowing the pieces to lock together seamlessly and providing a substantial long-grain to long-grain glue surface.

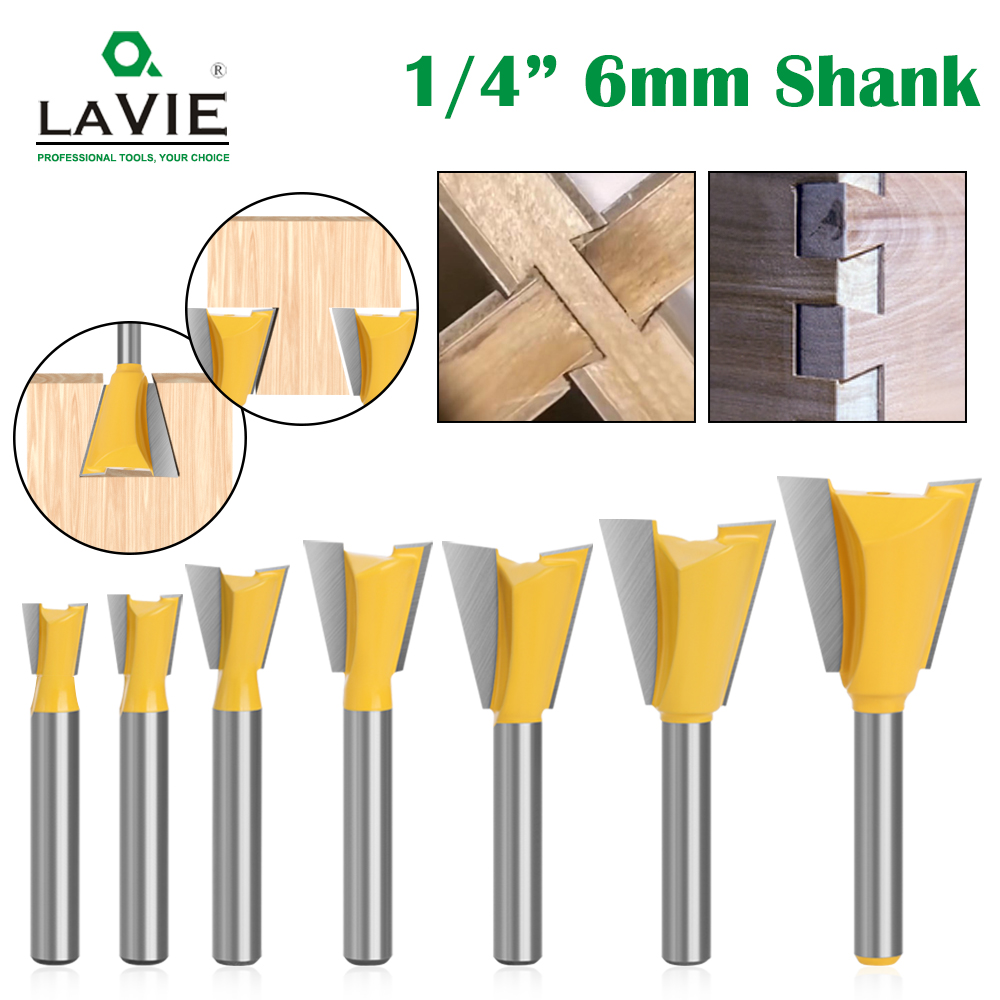

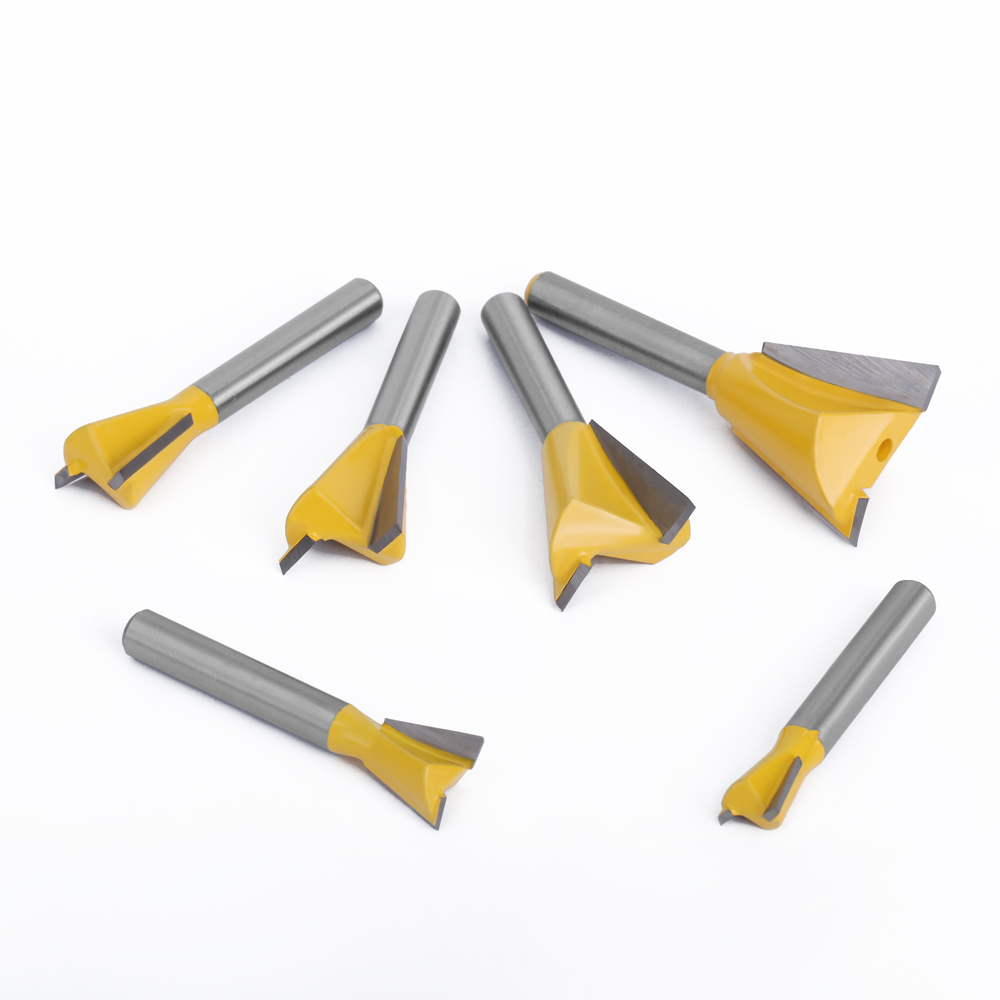

Cabinet construction utilizes various joint types depending on the specific stress load of the component. While Dovetail Joint Router Bits remain the standard for drawer box integrity due to their massive resistance to pulling forces, rail and stile bits are engineered specifically for the unique stress distribution and panel-housing requirements of cabinet doors.
| Joinery Type | Primary Application | Structural Advantage | Tooling Required |
|---|---|---|---|
| Rail and Stile | Cabinet Doors, Wainscoting | Allows panel float, high glue surface area | Matched or reversible profile bits |
| Half-Blind Dovetail | Drawer Boxes | Resists tension from pulling | Dovetail jig and specific bits |
| Pocket Hole | Face Frames, Shop Cabinets | Fast assembly, hidden screws | Drill guide jig, stepped bit |
| Mortise and Tenon | Heavy Furniture, Entry Doors | Maximum shear strength | Hollow chisel mortiser, tenoning jig |
Choosing the right tooling dictates your workflow efficiency and the final quality of your doors. You generally have two options: two-piece matched sets or reversible single bits. Two-piece matched sets allow operators to set up two separate router tables simultaneously. This is ideal for continuous production runs where you mill all stiles on one machine and all rails on another without changing bits. Reversible single bits save upfront costs but demand complete teardown, reassembly, and recalibration between milling the rails and stiles.
Modern 1/4-inch plywood rarely measures a true 0.25 inches; it typically measures closer to 7/32-inch or 5.2mm. Using fixed slot cutters on undersized plywood results in sloppy fitment and panel rattle. Adjustable cutters allow operators to alter the groove width using micro-shims, ensuring a snug fit regardless of material batch variations.
When selecting Woodworking Router Bits, prioritize 1/2-inch shanks. The larger mass reduces deflection under load, dissipates heat effectively, and ensures safer operation when spinning large diameter cutters. High-quality carbide with optimized shear angles and anti-kickback designs produces cleaner cuts on splinter-prone hardwoods like oak or maple. Component laser etchings marking parts as rail or stile prevent assembly errors during complex shim configurations.
The chosen profile impacts both the aesthetic outcome and the finishing process. Complex Ogee profiles require meticulous hand-sanding to avoid altering the shape, whereas square Shaker profiles allow for rapid block sanding.
Proceeding without proper machinery calibration guarantees ruined stock and compromised joints. Handheld routing is impossible for rail and stile operations due to the required stability and cutter size. A rigid router table equipped with a split fence, micro-adjustment capabilities, and strategically placed featherboards is mandatory. The fence halves must be perfectly coplanar to support the workpiece before and after the cut.
Baseline success requires all rails and stiles to be milled to the exact same thickness and width, featuring perfectly square ends. Hardwoods like maple or oak demand slow, consistent feed rates to prevent burning the end grain during coping cuts. If your stock is bowed or twisted, the profile will wander, resulting in gaps during assembly.
Dialing in bit height establishes the joint's flushness. Use brass setup bars or manufacturer-provided blocks to align the profile's center with the stock's center. Install the stile bit and adjust the router lift until the center slot cutter aligns precisely with the planned groove location of the target design.
Run the stiles and the inside edges of the rails face-down on the router table. Utilize featherboards to maintain consistent downward and inward pressure against the fence. Maintain a steady feed rate to prevent burn marks while ensuring the cutter clears chips effectively. If you push too fast, you risk tear-out; too slow, and you will burn the wood.
The cross-grain cut on the rail ends requires extreme stability. A coping sled or a perfectly squared backer board is absolutely necessary. The backer board pushes the rail through the bit, ensuring a square cut while acting as a zero-clearance support to prevent blowout or tear-out as the bit exits the end grain.
Always evaluate a dry fit using scrap stock from the same batch. Identify whether issues stem from height mismatch or depth mismatch. Tune the fit by adjusting individual shim placement in 0.005-inch increments to customize the groove depth for non-standard plywood center panels.
Maximizing tooling ROI means adapting existing setups to diverse project requests without purchasing entirely new sets. To modify standard frames for glass panes, route the standard profiles first. Next, use a rabbeting bit to remove the back lip of the groove. This creates a recess for the glass, which can then be secured using rubber space balls or dedicated glass retainer clips.
Combining rail and stile frames with heavy solid wood panels requires accurate expansion gap calculations. Leave adequate space within the groove to allow the solid panel to expand during high humidity without blowing apart the frame joints. Pre-finish the edges of solid panels before assembly so raw wood doesn't show when the panel shrinks in winter.
Advanced designs often feature tapered or beveled edge details. Executing a jack miter—a joint transitioning from a mitered profile on the decorative inner frame to a square butt joint at the structural intersection—requires specialized miter fixtures or precise hand-carving to ensure seamless visual continuity.
| Wood Species | Panel Width | Expected Seasonal Movement | Recommended Gap (Per Side) |
|---|---|---|---|
| Hard Maple | 12 inches | Moderate | 1/16 inch |
| Red Oak | 12 inches | High | 3/32 inch |
| Cherry | 12 inches | Low | 1/32 inch |
| MDF / Plywood | Any | Negligible | Snug fit (no gap needed) |
A joint gap at the profile intersection is caused by incorrect bit height alignment between the rail and stile cuts. Resolve this by re-shimming the bit components or micro-adjusting the router lift until the profiles interlock without daylight. Even a fraction of a millimeter off will cause the faces of the frame to be uneven.
Tear-out on cross-grain cuts is typically caused by a dull bit, feeding the stock too fast, or lacking a proper backer board. Implement a zero-clearance backer on the coping sled to support the wood fibers as the cutter exits the material. Replace the backer board frequently as the profile gets chewed up over multiple passes.
Loose or binding panel slots result from a mismatch between the slot cutter width and the actual panel thickness. Utilize adjustable bit shim stacks to dial in the groove width to within 0.005 inches of the panel, ensuring a secure fit that eliminates rattling. If the panel is too tight, you risk splitting the stiles during assembly.
A: No. Rail and stile bits remove a significant amount of material and require absolute stability. Using them in a handheld router is highly dangerous and will result in inaccurate, ruined cuts. A rigid router table is strictly required for safety and precision.
A: A matched set includes two separate bits, allowing you to set up two routers simultaneously for faster production. A reversible bit uses a single arbor where you rearrange the cutters to switch between profiles, saving money but increasing setup time.
A: Modern 1/4-inch plywood is usually undersized. To fix loose panels, use an adjustable rail and stile bit set that allows you to remove shims and narrow the slot cutter width. Alternatively, insert rubber space balls into the groove to prevent rattling.
A: Yes. First, route the standard rail and stile profiles. Then, use a rabbeting bit on your router table to remove the back lip of the panel groove. This converts the groove into a step where the glass pane can rest securely.
A: Due to the large diameter and heavy material removal, a router with a minimum of 1.5 to 2 horsepower is required. Underpowered routers will struggle, leading to burn marks, chatter, and poor cut quality.
A: Tear-out occurs when the router bit exits the end grain unsupported. To prevent this cross-grain blowout, you must use a squared backer board or a coping sled with a zero-clearance fence to back up the wood fibers as the bit passes through.
A: If setup blocks are missing, use a physical story stick or a perfectly cut sample piece from a previous successful project. Align the center of the slot cutter directly with the groove on your reference piece to establish the correct height.
