Purchasing tooling that is incompatible with your existing router setup is a common, costly, and potentially dangerous mistake. Many woodworkers assume that any bit will fit any router, leading to forced fits, severe safety hazards, poor cut quality, and damaged equipment. The confusion usually stems from a lack of understanding regarding shank sizes, metric versus imperial measurements, and the physical limitations of router collets. Forcing a mismatched bit into a collet can cause the bit to slip, vibrate excessively, or fly out during operation. This article provides a technical evaluation framework for understanding shank sizes, assessing router compatibility, and making informed purchasing decisions. Whether you are buying individual tooling or comprehensive Router Bit Sets, understanding the mechanics of your equipment is essential for safe and effective woodworking.
Compatibility is Absolute: Router bits do not universally fit all routers; the shank diameter must precisely match the router's collet size.
The 1/2-Inch Advantage: When equipment allows, 1/2-inch shanks provide superior mass, resulting in reduced chatter, better heat dissipation, and safer operation under heavy loads compared to 1/4-inch shanks.
Adaptability Has Limits: While a 1/2-inch router can accept 1/4-inch bits using specific adapters or interchangeable Router Collet Chuck Sets, a 1/4-inch router can never safely accept a 1/2-inch bit.
Precision Matters: Interchanging close metric and imperial sizes (e.g., 6mm in a 1/4-inch collet) creates critical failure points and must be avoided.
The relationship between the router motor, the collet, and the bit shank determines compatibility. The motor generates rotational force, which is transferred to the collet. The collet is a steel sleeve with slits that compresses around the bit shank when the collet nut is tightened. If the shank does not perfectly match the internal diameter of the collet, the system fails. You cannot rely on friction alone to hold a cutting tool spinning at 24,000 RPM. The mechanical lock provided by a properly sized collet is the only thing keeping the bit secured in the spindle.
Many operators fail to realize that collets are wear items. Over time, the repeated compression and expansion cycle causes the steel to lose its elasticity. When you introduce a mismatched shank into this environment, you accelerate that wear and create a situation where the collet can no longer grip even the correct size shank properly. This mechanical relationship requires exact tolerances. A deviation of even a fraction of a millimeter compromises the holding power and introduces dangerous runout.
A successful fit requires zero play, proper seating depth, and exact diameter matching. The bit must slide into the collet smoothly but without wobbling. It must also be seated deep enough to provide adequate surface area for the collet to grip. Standard practice dictates leaving about 1/8 to 1/16 of an inch gap at the bottom of the collet. If you bottom out the bit, the collet cannot pull down into the tapered spindle properly, which prevents it from tightening fully around the shank.
Proper seating also involves ensuring the collet grips the full length of the shank available within the sleeve. If you chuck a bit too high, you create a massive lever arm that amplifies rotational forces, leading to severe vibration and potential shank failure. The success of the cut depends entirely on this rigid, perfectly aligned connection between the machine and the cutting edge.
The collet dictates compatibility, not the cutting profile of the bit itself. You can have a massive panel-raising profile on a 1/2-inch shank, and it will only fit a 1/2-inch collet. Conversely, a tiny straight profile on a 1/4-inch shank will only fit a 1/4-inch collet. The cutting edge does not determine whether the tool fits the machine; the shank diameter does. This rule is absolute and cannot be bypassed through sheer force or makeshift shims.
The 1/4-inch shank is highly common, especially in smaller, more portable equipment. These shanks are perfect for palm routers, laminate trimmers, light detail work, and shallow passes. They excel in tasks requiring maneuverability and precision over raw power. When you are doing inlay work, routing hinge mortises, or applying a small roundover to a picture frame, a 1/4-inch shank provides the necessary agility without weighing down the tool.
However, physical limitations exist. Due to their thinner profile, 1/4-inch shanks are highly susceptible to deflection under load. When you push a 1/4-inch bit too hard through dense material, the shank actually bends slightly. This deflection leads to increased vibration, a rippled surface finish, and faster heat buildup. Excessive heat dulls the carbide edges prematurely and can even cause the shank to snap if the feed rate is too aggressive.
For serious woodworking, the 1/2-inch shank is the undisputed standard. Increased mass is the primary advantage. A thicker shank dampens vibration significantly and acts as a better heat sink, drawing heat away from the cutting edge. This stability translates directly to a cleaner cut, requiring less sanding and secondary cleanup.
1/2-inch shanks are mandatory for dense materials like MDF, hardwoods, and deep profile cuts. The sheer force required to mill these materials will easily snap or deflect a thinner shank. When building MDF cabinets, the abrasive nature of MDF glue-lines and heavy sheet-goods routing makes the deflection resistance of 1/2-inch shanks essential for clean, square joints. The extra steel in the shank absorbs the shock of hitting knots or inconsistent grain patterns, keeping the router stable in your hands or in the table.
Feature | 1/4-Inch Shank | 1/2-Inch Shank |
|---|---|---|
Mass & Rigidity | Low; prone to deflection under heavy loads. | High; resists bending and absorbs vibration. |
Heat Dissipation | Poor; heats up quickly during continuous use. | Excellent; acts as a heat sink for the carbide. |
Ideal Applications | Laminate trimming, light edge work, inlays. | Panel raising, deep mortises, heavy stock removal. |
Machine Compatibility | Palm routers, trim routers, standard routers (with adapter). | Mid-size to heavy-duty plunge and table routers. |
Global manufacturing introduces metric sizes, complicating compatibility. Metric sizes are prevalent in European and Asian manufacturing. If you purchase tools internationally, you must verify the shank size carefully. A 6mm shank is not a 1/4-inch shank, and a 12mm shank is not a 1/2-inch shank. Attempting to mix these will result in a poor fit and a dangerous operating environment.
The 8mm shank is growing in popularity, often used with Leigh dovetail jigs. It serves as a compromise, offering more stability than a 1/4-inch shank while fitting into smaller routers equipped with the appropriate collet. If you plan to use 8mm tooling, you must ensure your router has a dedicated 8mm collet available from the manufacturer.
Router Collet Chuck Sets interface directly with the router's spindle. They are the gripping mechanism that secures the bit. High-quality sets allow a single router to accept multiple shank sizes safely by swapping the entire collet assembly. Instead of relying on a single fixed size, these sets provide machined cones that match the spindle's taper perfectly while offering different internal diameters for various shanks.
A proper collet chuck set includes the collet cone and the locking nut. Sometimes these are integrated, and sometimes they snap together. Regardless of the design, the purpose is to provide uniform clamping pressure across the entire surface area of the bit's shank. This uniform pressure is what keeps the bit centered and prevents it from slipping vertically during a heavy plunge cut.
You can achieve downward compatibility by using interchangeable collets to run 1/4-inch bits in a 1/2-inch router. This flexibility allows woodworkers to utilize smaller, specialized bits without needing a separate palm router. If you have a large 3HP router mounted in a table, you can still run a delicate 1/4-inch veining bit simply by swapping the 1/2-inch collet for a 1/4-inch collet. However, this only works downwards; you cannot run a 1/2-inch bit in a 1/4-inch router because the spindle opening itself is physically too small to accept the larger shank.
There is a significant difference between swapping a collet and using a reducer sleeve. A cheap split-sleeve reducer introduces a secondary layer of potential failure. It is essentially a metal tube with a slit down the side that you slide over a 1/4-inch shank to make it fit a 1/2-inch collet. While they work in a pinch, they are notorious for introducing runout (wobble) because you are stacking tolerances. Investing in dedicated, machined Router Collet Chuck Sets maintains spindle concentricity and ensures maximum safety.
Low-quality adapters are prone to dust buildup and slippage. Fine wood dust works its way between the sleeve and the collet, acting as a dry lubricant. If the sleeve slips, the bit can plunge unexpectedly into the workpiece, ruining the project, or eject entirely, creating a severe hazard in the shop.
Shank diameter directly impacts the surface finish of the wood. Thicker shanks resist deflection, ensuring the cutting edge remains stable against the material. This stability reduces chatter marks, which are the rhythmic ridges left on the wood surface when a bit vibrates during the cut. Eliminating chatter saves hours of sanding and ensures tight-fitting joinery.
The relationship between bit length, shank thickness, and rotational force (RPM) is critical. Longer bits require thicker shanks to withstand the increased leverage forces at high RPMs. A 2-inch long flush-trim bit on a 1/4-inch shank is a recipe for disaster, as the cutting forces at the tip will easily bend the thin steel shaft. Always match the shank diameter to the overall mass and length of the cutting profile.
The safety margins differ significantly between handheld routing and table-mounted routing. In handheld operations, human physical control is tested by tool torque and chatter. If a bit grabs the wood, the router will twist violently in your hands. Using 1/2-inch shanks in handheld routers provides a more stable cutting experience, as the bit is less likely to deflect and catch the grain unpredictably.
Table-mounted setups maximize structural stability. The machine handles the torque, allowing for safer, heavier cuts. Larger 1/2-inch shank Router Bits are highly recommended for table setups. When you are pushing large stock past a spinning cutter, you want the absolute maximum rigidity in the tooling to prevent the bit from wandering or vibrating under the load of the feed pressure.
Heat destroys carbide edges. During continuous operation, friction generates intense heat at the cutting interface. Thick 1/2-inch shanks dissipate thermal energy far more effectively than thin 1/4-inch shanks. The larger volume of steel acts as a thermal reservoir, pulling heat away from the brazing that holds the carbide to the body of the bit.
This thermal dissipation keeps the cutting edge cooler, extending the life of the tool and maintaining cut quality over long production runs. When a bit overheats, the carbide micro-fractures and dulls rapidly. You will notice burn marks on the wood and a distinct change in the sound of the cut. Upgrading to thicker shanks is a direct investment in the longevity of your cutting tools.
The "close enough" fallacy is dangerous. Putting a 6mm shank in a 1/4-inch (6.35mm) collet, or an 8mm shank in a 5/16-inch collet on handheld routers, creates catastrophic risks. The collet cannot compress enough to secure the undersized shank. Even if it feels tight when you wrench it down, the operational vibration will loosen it immediately.
Signs of a poorly seated bit include scoring on the shank, difficulty tightening the nut, or the bit creeping out during operation. If you see galling or scratch marks on the shank of your bits, your collet is either the wrong size, dirty, or worn out. Operating a router under these conditions is a violation of basic shop safety protocols.
Serious hobbyists and professionals should default to 1/2-inch sets for primary shop routers, especially table-mounted or heavy plunge routers. The scalability of 1/2-inch tooling ensures it can handle demanding projects, from building custom doors to milling thick hardwood slabs. The long-term ROI is higher due to reduced bit breakage and longer sharpening intervals.
Buying a comprehensive set in 1/2-inch shank size gives you a robust foundation. You will not have to second-guess whether the bit can handle the material. While the initial investment is higher than 1/4-inch sets, the durability and cut quality pay dividends over years of use.
Equipping a dedicated trim router for job-site edge profiling justifies 1/4-inch sets. Portability is key here. If you are installing laminate countertops or easing edges on installed trim work, a lightweight router with 1/4-inch bits is the correct tool for the job. Additionally, budget constraints often lead beginners to evaluate entry-level 1/4-inch sets. These sets are useful for learning basic routing mechanics before upgrading equipment.
Every beginner or intermediate set should contain these five frequently used profiles. Understanding which shank size suits each profile best will guide your purchasing decisions.
Straight bits: Used for grooves, dados, and mortises. 1/2-inch shanks are highly recommended for anything over 1/4-inch cutting diameter to prevent breakage.

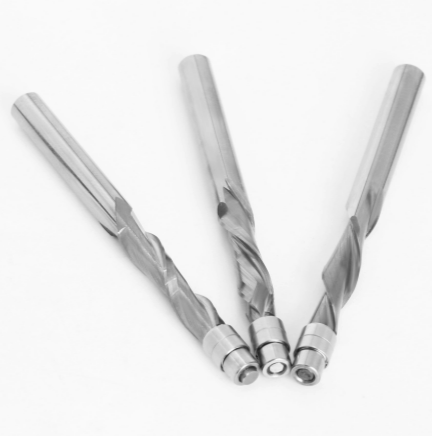

Flush-Trim bits: Essential for pattern routing and template work. 1/2-inch shanks provide the rigidity needed for clean template following.
Roundover bits: Used for softening sharp edges. 1/4-inch shanks are perfectly fine for small radius roundovers (1/8" to 1/4").

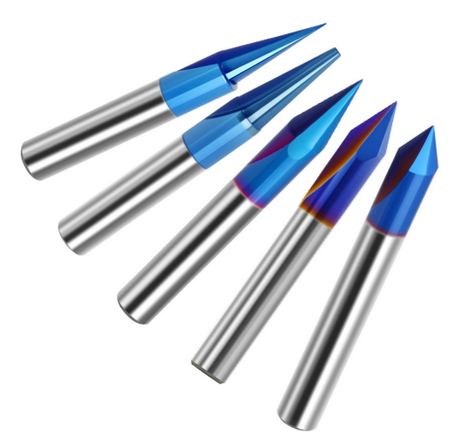

Chamfer bits: Create angled bevels on edges. Depending on the size of the bevel, either shank size works, but 1/2-inch is better for deep chamfers.
Rabbeting bits: Used for cutting steps in the edge of a board for joinery. 1/2-inch shanks are mandatory due to the large amount of material being removed.
Beyond shank size, evaluate the carbide thickness, anti-kickback designs, and shear angles. Thicker carbide allows for more sharpenings, extending the life of the bit. Anti-kickback designs feature a prominent shoulder behind the cutting edge that limits the depth of cut per revolution, preventing the bit from grabbing too much material and kicking back at the operator. High shear angles slice the wood fibers rather than chopping them, resulting in a cleaner finish with less tear-out.
Check your router's manual or measure the existing collet to determine maximum capacity. Look for the internal diameter of the collet sleeve. If it measures exactly 0.5 inches, you have a 1/2-inch capacity router. If you bought a used router, do not assume the collet installed is the only one it can take. Look up the model number to see if 1/2-inch collets are available for purchase.
Older or budget-tier routers are often permanently limited to 1/4-inch collets. When executing deeper cuts with a 1/4-inch-only machine, strict safety protocols and feed-rate adjustments are required. Take multiple shallow passes rather than one deep cut to prevent shank deflection and bit breakage. Listen to the motor; if it bogs down, you are pushing too hard or cutting too deep for the 1/4-inch shank to handle safely.
A woodworker needs to abandon a 1/4-inch-only router and invest in a 1/2-inch capable machine when projects demand heavy material removal, such as raising panels, cutting deep mortises, or working extensively with dense hardwoods. If you find yourself constantly breaking 1/4-inch bits or struggling with severe chatter, the machine is limiting your capabilities.
Clean collets and shanks regularly to ensure maximum grip. Use a brass brush and a resin remover to clean the internal slits of the collet. Pitch and resin build up inside the collet over time, creating a slick surface that reduces clamping pressure. This prevents dust buildup, which can cause bits to creep up or drop during operation. Never lubricate the inside of a collet or the bit shank; they rely on dry metal-to-metal friction to hold securely.
Router bits are not universally compatible; shank size is dictated by the collet. 1/2-inch shanks offer objectively superior performance and safety for most applications due to their mass and rigidity. To streamline your purchasing decisions, check your router capacity first. Default to 1/2-inch tooling whenever possible. If you must use 1/4-inch bits in a larger router, rely on high-quality collet chucks rather than cheap sleeves. Never mix metric and imperial measurements.
Audit your current router's collet size and verify its maximum capacity before purchasing new tooling.
Inspect your existing bits for scoring, wear, or signs of slippage, and discard any damaged shanks.
Clean your collets and shanks with a brass brush and resin remover to ensure secure seating.
Upgrade your foundational tooling to a high-quality 1/2-inch set for improved safety and cut quality on heavy-duty projects.
A: Yes, but only if you use a dedicated 1/4-inch collet from a matching Router Collet Chuck Set or a high-quality collet reducer sleeve designed for your specific router model.
A: No. A 1/4-inch router collet cannot be expanded to accept a 1/2-inch shank. Attempting to modify the tool or use unsafe adapters is extremely dangerous.
A: No. 1/4 inch equals 6.35mm. A 6mm bit in a 1/4-inch collet will not tighten properly, especially on handheld routers, and can fly out during operation.
A: Slippage is usually caused by a mismatched shank and collet size, a dirty collet, a worn-out collet, or bottoming out the bit inside the spindle before tightening.
A: Yes, for most applications. They offer more mass, which reduces vibration, dissipates heat faster, and provides a cleaner cut, especially in dense materials like MDF or hardwoods.
A: No. Router Bit Sets are sold with a uniform shank size (either all 1/4-inch or all 1/2-inch). You must purchase the set that matches your router's collet capacity.
