When shops and hobbyist operators first adopt automated cutting capabilities, a common temptation arises. You look at your existing inventory of standard woodworking tooling and wonder if it can do the job. After all, a spinning bit cuts wood, right? This assumption ignores a fundamental mismatch in operational dynamics. Manual routing relies on human-controlled feed rates and sensory feedback. Automated operations apply rigid, high-torque, programmed lateral forces. This disconnect introduces severe safety hazards and significant financial risks due to unexpected tool failure.
The rise of DIY built-from-scratch automated routers and desktop kits further complicates this issue. Many of these machines utilize standard handheld trim routers as spindles. This blurs the lines of tool compatibility and gives a false sense of security. Just because a shank fits into a collet does not mean the tool can handle automated toolpaths. You must evaluate tooling based on strict engineering tolerances, material composition, and specific CAM requirements. Relying merely on shank compatibility is a dangerous oversight. Transitioning to proper tooling ensures safety, protects your equipment, and guarantees the precision required for automated manufacturing.
Standard woodworking bits lack the structural rigidity required for automated, high-feed-rate lateral cutting, increasing the risk of catastrophic tool breakage.
Bearing-guided bits are inherently incompatible and highly dangerous in CNC spindles due to extreme RPM limits and the lack of a physical hand-guided template.
Using standard router bits during automated, unattended, or remotely monitored CNC runs exponentially increases the hazard of friction-induced workshop fires.
While certain standard bits (like V-groove or surfacing bits) can be cross-utilized under strict feed/speed recalibrations, transitioning to dedicated CNC Router Bits is mandatory for production-scale reliability.
Upgrading to Solid Carbide CNC End Mills significantly reduces deflection, improves chip evacuation, and lowers the long-term cost-per-cut compared to carbide-tipped standard bits.
To understand why standard tools fail in automated environments, we must define the baseline requirements for automated tooling. Success in this arena demands minimal runout, exceptional rigidity, and highly predictable chip loads. When a machine dictates the feed rate, the tool must withstand constant, unyielding pressure. It cannot rely on an operator to slow down when encountering a knot or dense grain. The tooling must maintain its structural integrity while evacuating chips efficiently to prevent heat buildup. These criteria form the foundation of safe and effective automated cutting operations.
In a production shop, you measure success by how long a tool stays sharp and how consistently it produces clean edges. If you have to stop a job halfway through because a bit is screaming or burning the wood, you lose money. Automated cutting requires tools engineered specifically for continuous, high-stress environments. We look for tools that can handle aggressive plunge rates and high lateral loads without snapping. This requires a completely different manufacturing approach than what you find in hardware store router bits.
Standard woodworking bits typically feature a brazed carbide-tipped construction. A steel body holds small pieces of carbide brazed onto the cutting edges. Under continuous lateral load, this design is highly prone to micro-fractures. The brazing process introduces weak points that cannot withstand the rigid forces of automated toolpaths. The steel body itself can flex under heavy loads, leading to inaccurate cuts and eventual tool failure.
In contrast, Solid Carbide CNC End Mills offer monolithic structural integrity. Machined from a single piece of carbide, they provide immense rigidity. This solid construction resists deflection and absorbs the high-torque demands of automated cutting without fracturing. When you push a solid carbide tool through dense hardwood at 100 inches per minute, it stays perfectly straight. The lack of brazed joints means there are no weak points to fail under stress.
Chip evacuation is a critical factor in tool performance. Standard straight flutes often trap heat and chips in deep pockets. When cutting manually, you can lift the tool to clear debris. Automated machines plow forward, packing chips into the cut channel. This causes massive heat buildup, ruining the temper of the tool and burning the material. If you run a standard straight bit in a deep pocketing operation, you will likely start a fire.
Dedicated tooling utilizes specific upcut, downcut, and compression geometries. These designs actively manage chip evacuation and material hold-down. An upcut spiral pulls chips out of the cut, while a downcut spiral pushes fibers down for a clean top edge. Compression spirals combine both to leave pristine edges on double-sided laminates. By matching the flute geometry to the material and operation, you ensure efficient chip removal and prevent heat buildup.
The connection between the tool and the machine is vital for precision. Handheld router chucks accept looser tolerances because human hands naturally absorb minor vibrations. Automated spindles use precision ER collets that demand exact dimensional tolerances. If a shank is slightly undersized or out of round, the collet cannot grip it evenly. This leads to slippage, excessive runout, and poor surface finishes.
Dedicated automated tooling is ground to exacting tolerances to ensure perfect collet engagement. This precise fit maximizes holding power and minimizes harmonic vibrations during high-speed operations. When you insert a high-quality tool into a clean collet, it seats perfectly. This solid connection transfers the spindle's power directly to the cutting edge without any lost energy or vibration.
We must also contrast industrial high-frequency brushless spindles with consumer-grade motors used in DIY builds. Industrial spindles feature robust bearing preloads and incredibly tight runout tolerances. They are designed to run continuously for hours without overheating. They can handle the heavy side loads generated by large diameter tools cutting dense materials.
Consumer-grade motors lack this robust bearing structure. When you introduce an unbalanced standard bit into an industrial spindle, the tight tolerances amplify the vibration. Conversely, using heavy standard bits in a DIY motor quickly destroys the weaker bearings. Understanding these spindle differences highlights why matching the tool to the machine's engineering is non-negotiable. You cannot expect a trim router to perform like a 5HP industrial spindle, regardless of what tool you put in it.
Using inappropriate tooling introduces immediate physical dangers and severe machine damage potential. When a tool fails at 20,000 RPM, it does not simply stop cutting. It shatters. Shrapnel ejects at high velocity, posing a lethal threat to anyone nearby. I have seen broken carbide embed itself in drywall across the shop. It is not a risk worth taking.
Furthermore, a broken tool leaves the spindle plunging into the material uncontrollably. This can destroy the workpiece, ruin the spoilboard, and severely damage the spindle itself. The implementation risks far outweigh any perceived convenience of using existing standard tooling. A single broken tool can cost you hundreds of dollars in ruined material and machine repairs.
Deflection occurs when lateral cutting forces cause the tool to bend. Automated machines utilize unyielding feed rates. They push the tool through the material exactly as programmed. Standard bits lack the rigidity to handle this constant pressure. They bend, and because they are brittle, they snap.
A human operator instinctively slows down when feeling resistance from dense grain. The machine does not. It forces the standard bit past its breaking point. This lack of sensory feedback makes deflection a primary cause of catastrophic tool failure when cross-utilizing tools. You must use tools rigid enough to withstand the programmed feed rates without bending.

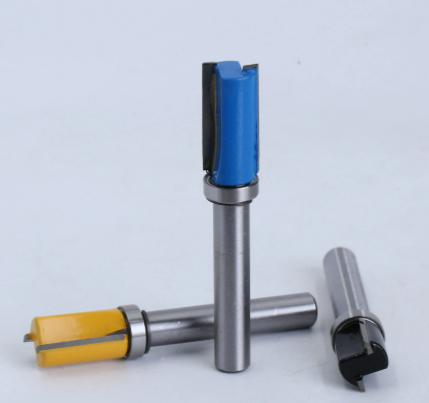

One of the most extreme hazards involves using bearing-guided bits in an automated setup. Handheld operations rarely exceed the speed limits of these small guide bearings. However, automated spindles often operate between 18,000 and 24,000 RPM. At these speeds, standard bearings disintegrate rapidly.
The lubrication burns off, the bearing seizes, and it explodes into dangerous projectiles. Additionally, the intense heat generated transfers directly into the spindle, leading to premature spindle bearing failure. Never use bearing-guided tools in an automated spindle. It is a guaranteed way to destroy the tool and potentially damage your machine.
Automated manufacturing often involves running G-code programs with minimal supervision. This unattended operation is a major efficiency benefit but becomes a severe liability with substandard bits. If a standard tool dulls quickly or packs with chips, friction increases exponentially.
Without active physical supervision, this friction easily ignites wood dust and chips. Running inappropriate tooling exponentially increases the hazard of friction-induced workshop fires. You must never leave a machine unattended when running tools not specifically rated for automated, continuous loads. Always monitor the cut, especially when trying a new tool or material.
Standard bits are rarely balanced for the extreme RPMs of industrial spindles. This imbalance creates harmonic vibrations, commonly known as runout. Runout means the tool is spinning in a slightly eccentric path rather than a perfect circle. This degrades spindle bearings over time, leading to expensive repairs.
It also ruins surface finishes, leaving chatter marks and irregular cuts on the workpiece. Dedicated Router Bits are dynamically balanced to eliminate these vibrations, protecting your spindle and ensuring smooth cuts. Proper balancing is essential for achieving tight tolerances and clean edges.
To make informed tooling decisions, you must map specific features to production outcomes. We evaluate tooling based on quality, efficiency, and scalability. Quality refers to the surface finish and dimensional accuracy. Efficiency involves feed rates, chip evacuation, and cycle times. Scalability looks at tool life and consistency across multiple runs.
When you analyze these dimensions, the superiority of dedicated tooling becomes clear. Standard bits might get you through a single prototype, but they fail miserably in a production environment. The table below illustrates how standard bits compare to dedicated automated tooling across these critical dimensions.
Feature / Dimension | Standard Woodworking Bits | Dedicated Automated Tooling |
|---|---|---|
Material Construction | Brazed Carbide-Tipped | Solid Micro-Grain Carbide |
Rigidity & Deflection | High deflection under load | Minimal deflection, highly rigid |
Chip Evacuation | Poor (straight flutes trap chips) | Excellent (optimized spiral geometries) |
Plunge Capability | Requires ramping or pre-drilling | Center-cutting for vertical plunging |
Surface Finish | Prone to tear-out and chatter | Clean, shear-cutting action |
The method of entering the material differs vastly between tool types. Dedicated tooling features center-cutting geometry. The cutting edges extend entirely across the bottom of the tool. This allows for direct vertical plunging into the material, much like a drill bit. This direct entry saves time and simplifies programming.
Standard bits typically have a dead spot in the center. If you attempt a vertical plunge, the center simply burns and crushes the wood, risking a bottom-out crash. To use standard bits, you must program complex manual ramping or pre-drill entry holes, which wastes valuable cycle time. Ramping requires the tool to move laterally while plunging, which puts additional stress on the bit.
The ultimate test of a tool is the finish it leaves behind. Standard bits often cause tear-out and chatter marks. Their straight cutting edges chop at the material rather than slicing it. This requires extensive post-processing and sanding. If you spend an hour sanding a part that took five minutes to cut, you are losing money.
Specialized tooling utilizes spiral flutes that create a continuous shear-cutting action. This slicing motion cleanly severs wood fibers, leaving exceptionally smooth edges. By selecting the correct upcut or downcut geometry, you can completely eliminate tear-out on delicate veneers and laminates, drastically reducing finishing time. A good compression bit can leave a finish that requires zero sanding.
Evaluating overall value requires looking beyond the initial purchase price. Standard bits have a low upfront cost, making them attractive for quick jobs. However, they dull rapidly under continuous automated loads. You must factor in the high cost of ruined stock, machine downtime for tool changes, and frequent replacements.
Dedicated tooling costs more initially but offers a vastly superior lifespan. The monolithic carbide construction stays sharp longer and cuts faster. This significantly lowers the long-term cost-per-cut, making it the only viable choice for serious production. When you calculate the cost of a ruined sheet of cabinet-grade plywood, the price of a premium solid carbide bit seems negligible.
While we strongly advocate for dedicated tooling, there are strict, narrow parameters where cross-utilization is technically feasible. You must approach this without compromising safety. The key is understanding the limitations of the tool and adjusting the machine's parameters to match. You cannot run a standard bit at the same aggressive feeds and speeds as a solid carbide end mill.
By categorizing applications into low-stress scenarios, you can safely utilize certain standard profiles when necessary. This requires a deep understanding of chip loads and cutting forces. If you are unsure, always default to dedicated tooling. It is better to spend a little extra on the right tool than to risk damaging your machine or injuring yourself.
Acceptable use cases are limited to operations that exert minimal lateral force on the tool. Shallow V-carving for signage is a common example. The pointed geometry of a V-bit inherently reduces cutting pressure. Chamfering edges is also acceptable, provided the bit absolutely does not have a guide bearing attached.
Using large-diameter spoilboard surfacing bits is another common cross-utilization. These bits take very shallow skimming passes, creating minimal stress on the brazed carbide tips. In these specific low-stress applications, standard bits can perform adequately. However, you must still monitor the cut closely and ensure the bit remains sharp.
Material density heavily dictates tool choice. Cheap bits are sometimes acceptable for low-density foam machining. Foam offers virtually no resistance, eliminating the risk of deflection or tool breakage. Softwoods like pine or cedar can also be cut with standard bits if you take shallow passes.
Some modeling plastics are forgiving enough for standard straight bits. However, there is a strict mandate for proper tooling when cutting hardwoods, composites, or aluminum. These dense materials require the shear strength and rigidity that only solid carbide can provide. Attempting to cut aluminum with a standard woodworking bit will result in immediate failure.
If you choose to use non-dedicated tooling, you must manually override standard CAM calculations. The software assumes you are using rigid, high-performance tools. You must drastically reduce the feed rate to accommodate the lower shear strength of standard bits. This prevents the tool from deflecting and snapping under pressure.
Simultaneously, you may need to adjust the spindle RPM to maintain a proper chip load and prevent burning. Failing to recalibrate these settings will result in immediate tool failure. You must carefully balance the feed and speed to find the sweet spot where the standard bit cuts without deflecting or overheating. This often requires trial and error on scrap material.
Upgrading your tool library is an investment in scalable production. The decision-maker must weigh the initial cost against the long-term benefits of increased efficiency and reduced waste. Dedicated tooling allows for faster feed rates, which translates to shorter cycle times and higher throughput. You can get more parts out the door in less time.
The reduction in scrapped parts due to tool failure or poor surface finish directly impacts the bottom line. When you factor in the extended tool life and the ability to run jobs unattended safely, the return on investment becomes undeniable. A well-equipped shop operates smoothly and predictably, minimizing downtime and maximizing profits.
You do not need to buy every tool available to get started. We recommend building a core library of essential starter profiles that cover 90% of standard operations. This targeted approach saves money while providing the versatility you need.
Begin with a 1/4-inch downcut bit for clean top edges on pocketing and profiling.
Add a 1/8-inch upcut bit for detailed work and deep slotting where chip evacuation is critical.
Include a 1/4-inch or 3/8-inch compression bit for cutting sheet goods like plywood and melamine.
Purchase a high-quality V-bit for engraving and chamfering.
Invest in a reliable spoilboard surfacing bit to keep your machine bed perfectly flat.
Purchasing the right tools is only half the battle; you must configure your software correctly. It is a critical step to accurately input tool geometry, flute count, and material data into CAM software like Fusion 360 or VCarve. The software uses this data to generate safe, optimized toolpaths.
If you input incorrect parameters, the software may command a plunge rate that snaps the bit or a feed rate that causes massive deflection. Take the time to build an accurate tool database in your CAM software to ensure reliable and predictable results. Double-check your settings before running any new program.
Transitioning to high-performance tooling requires a period of adjustment. To mitigate conversion risks, start testing new tools with conservative chip loads. Do not immediately jump to the maximum recommended feed rates. Gradually optimize feeds and speeds based on your specific machine's rigidity and the material being cut.
Start with a feed rate 20% lower than the manufacturer's recommendation.
Run a test cut on scrap material and observe the chip formation.
Listen to the machine; a smooth, even hum indicates a good cut.
If the tool screams or chatters, adjust your RPM or feed rate accordingly.
Document your successful settings to build a reliable baseline for future projects.
Audit your current tooling inventory immediately and remove any bearing-guided bits from the automated cutting area.
Invest in a foundational set of dedicated solid carbide tooling, starting with a downcut, an upcut, and a compression profile.
Update your CAM software tool database with the precise geometry and recommended chip loads for your new tools.
Run a series of test cuts on scrap material to dial in your feeds and speeds before starting production runs.
A: Generally, no. Most standard bits have a dead spot in the center and are not center-cutting. Plunging vertically will burn the material and can cause the tool to crash or break. You must use ramping toolpaths or pre-drill entry holes if using standard bits.
A: Automated spindles operate at extreme RPMs, often exceeding 18,000 RPM. Standard guide bearings are not rated for these speeds. They will overheat, disintegrate, and eject high-velocity shrapnel, posing a severe safety hazard to operators and the machine.
A: Standard bits use small carbide pieces brazed onto a steel body, making them prone to micro-fractures under continuous lateral loads. Solid carbide end mills are machined from a single piece of carbide, offering immense rigidity, minimal deflection, and superior heat resistance.
A: No. Standard bits dull quickly and pack with chips, generating massive friction. Running them unattended exponentially increases the risk of friction-induced workshop fires. Always supervise operations when using tools not explicitly rated for continuous automated loads.
A: Handheld routing relies on sensory feedback, allowing the operator to slow down when encountering resistance. Automated machines use rigid, programmed feed rates that do not yield to material density changes, requiring stronger, dedicated tooling to withstand the constant pressure.
A: Yes, provided the shank is precisely 1/4-inch and in good condition. However, handheld bits often have looser manufacturing tolerances. If the shank is slightly undersized, the ER collet will not grip it evenly, causing dangerous runout and vibration.
A: The machine will continue executing the G-code without knowing the tool is broken. The broken shank will plunge into the material, destroying the workpiece, ruining the spoilboard, and potentially causing severe damage to the spindle bearings and collet assembly.
